Sample valves allow a sample of a product to be taken directly from process lines. Valves are available in the right angle or inline configurations. All sample valves are supplied with an FDA approved FKM stem seal. Tapered clamp connections help to prevent product backflow on inline valves. All wetted parts are made from 316L stainless. Steel & O’Brien inline sample valves are also available in eccentric positions for applications where product flow may be low.
SAMPLE VALVES
| Part Number | Size (inches) | A | B |
|---|---|---|---|
| SVRA-.75X.375 | 3/4 X 3/8 | 2.100 | 1.363 |
| SVRA-.75X.50 | 3/4 X 1/2 | 2.100 | 1.407 |
| SVRA-1X.375 | 1 X 3/8 | 2.100 | 1.363 |
| SVRA-1X.50 | 1 X 1/2 | 2.100 | 1.407 |
| SVRA-1.5X.375 | 1 1/2 X 3/8 | 2.100 | 1.363 |
| SVRA-1.5X.50 | 1 1/2 X 1/2 | 2.100 | 1.407 |
| SVRA-2X.375 | 2 X 3/8 | 2.051 | 1.363 |
| SVRA-2X.50 | 2 X 1/2 | 2.421 | 1.407 |
Features:

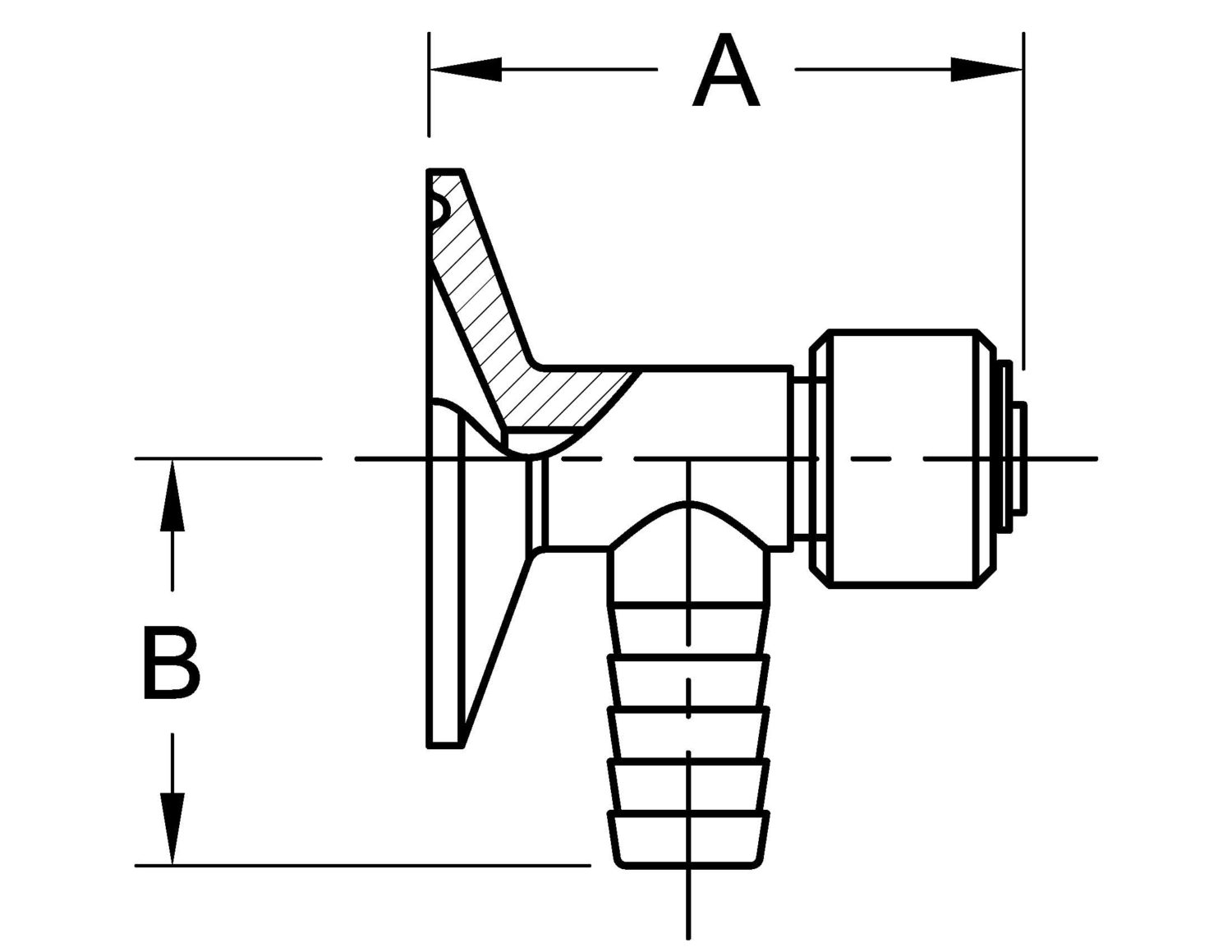

* Nylon nut cover allows hand operations at higher temperatures. * Available in a whide variety of end connections with rubber hose barb, Tygon hose barb or weld style sample outlets. * Set screw stop prevents accidental removal of valve stem from valve body. * Temperature rating: 300�F at 200 PSI. NOTE: Drawing, part numbers, and dimensions shown are for right angle outlet style sample valve with clamp x hose barb connections. Call Steel & O’Brien for details on other configurations.
