TOP-FLO® 60ARV Air Relief Valves

Contact Us

Part NumberSize
386015ARV-316-A1-1/2
386020ARV-316-A2
386025ARV-316-A2-1/2

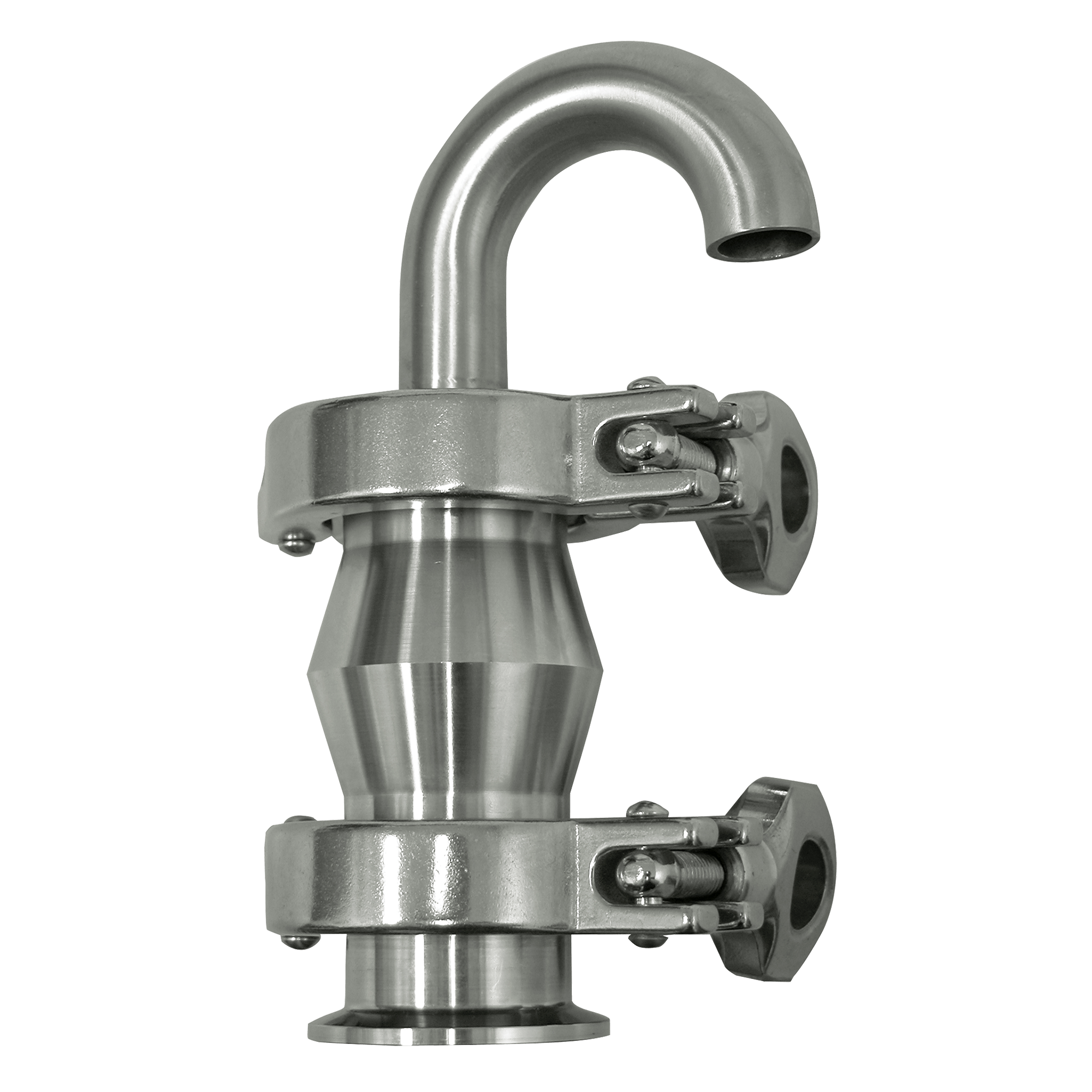

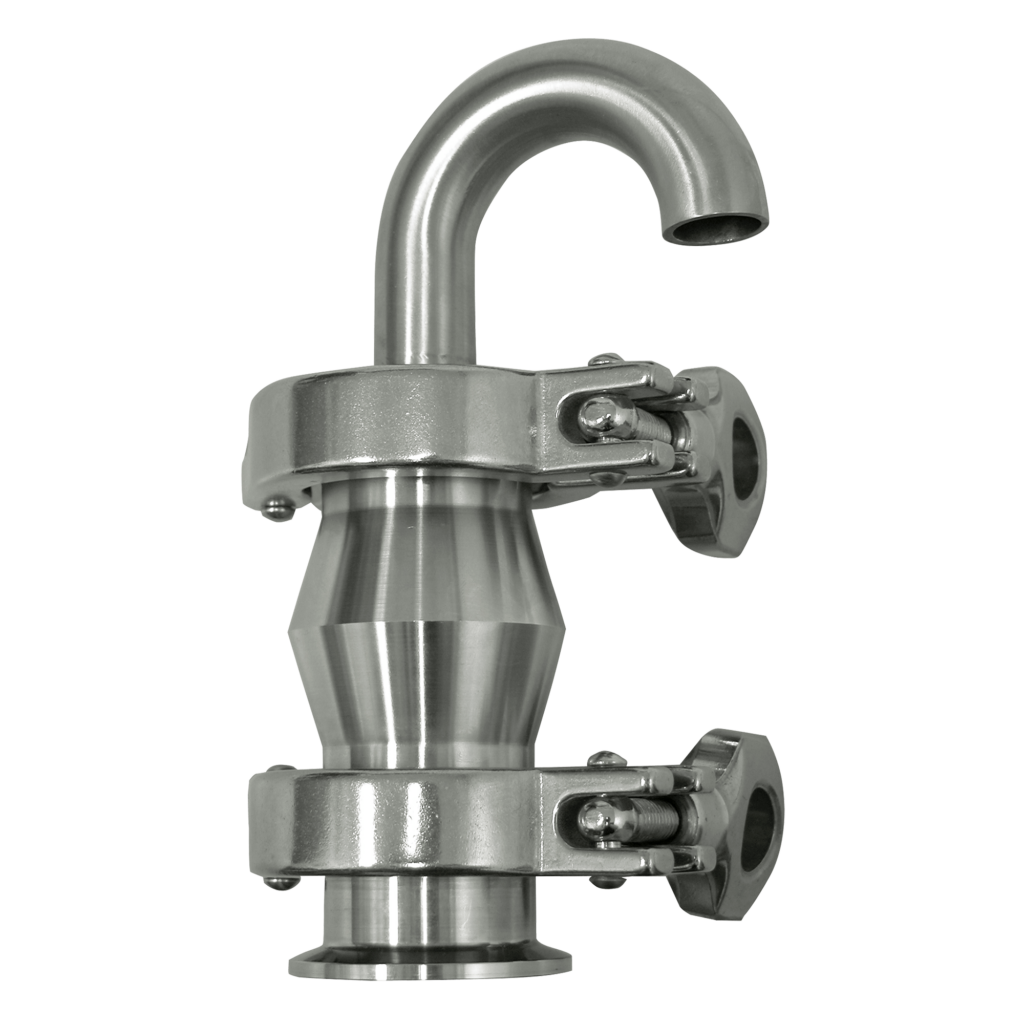

The 60ARV Air Relief Valves are used primarily when removal of air from a line without loss of product is a concern. The design of the 60ARV is simple: a ferrule, a housing with a plastic ball, and a vent pipe all connected using 2 standard heavy-duty clamps. This design will not let air enter the line or container under negative pressure.

The 60ARV is double-seated. The lightweight ball is freely moving and depending on pressure conditions will close against the upper or lower seat. This valve is not designed for use in operation with liquids having less than 1.0 specific gravity.

Features:

The valve can be mounted on the top of a pipeline or container to bleed a pipeline where an air pocket may have formed during operation.

Bleeding a pipe on the suction side of a pump will be automatic. Air binding will be prevented. These valves are found mounted on the top of the inlet pipe in front of the pump.

Ordering Information

Steel grade ……… Stainless steel, AISI 316L

Ball………………… Polypropylene

Finish……………… Polished to 32Ra

Tech Specs

Maximum product pressure ……150 PSI

Maximum temperature…………275°F

Net weight………………………19 oz. (9.5 kg)

For proper operation:

• Product density must be 1.0 or higher

• The valve must be mounted vertically
