Actuated butterfly valves offer the same features and benefits of our manual butterfly valves, along with pneumatic actuation.
STANDARD ACTUATED BUTTERFLY VALVES

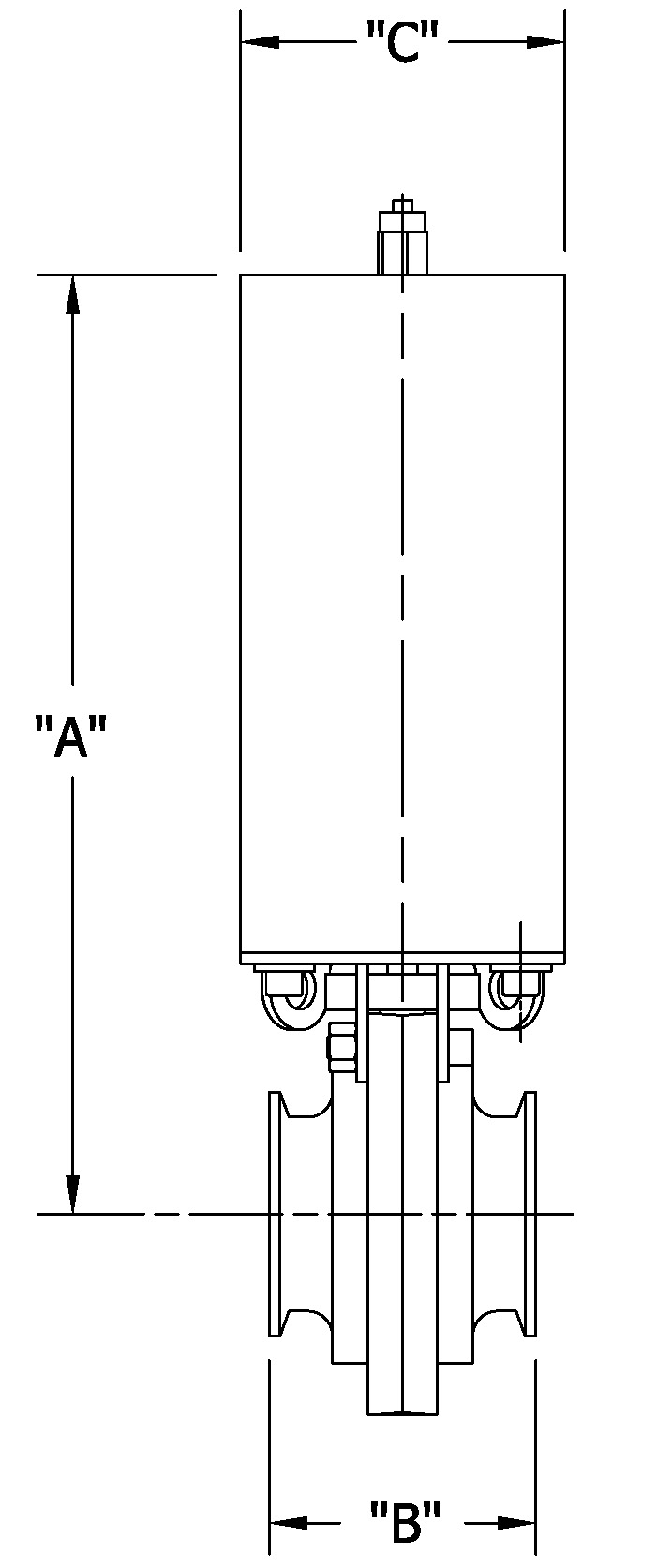

| Part Number | Size (inches) | A | B | C |
|---|---|---|---|---|
| BFVAC-1-NC | 1 | 8.910 | 2.600 | 3.350 |
| BFVAC-1.5-NC | 1 1/2 | 9.020 | 2.500 | 3.350 |
| BFVAC-2 | 2 | 9.530 | 2.750 | 3.350 |
| BFVAC-2.5-NC | 2 1/2 | 9.580 | 2.750 | 3.350 |
| BFVAC-3-NC | 3 | 9.810 | 3.000 | 3.350 |
| BFVAC-4-NC | 4 | 15.440 | 3.000 | 4.730 |
Features:
* Required Actuation Air Pressure: 73 PSI (min.) – 130 PSI (max.). * Actuator material: 304SS. * Actuator spare parts available, includes: lock wire clip, contact seal, PTFE gaskets, SS E circlip, X-Ring Seal, O-Rings. * Available in “Normally Open”, Normally Closed”, and “Dual Acting” actuation. * 1″-3″ is low mount actuator. 4″ requires adapter for mounting (included). * Available in 304 and 316L (actuator 304). * Silicone, EPDM, and Viton seats available. * Polished 32Ra I.D./O.D. * Actuators provided with 1/4″ airline to M10 x 1 threaded adapter. * Proximity switch mountain ports on actuators 1″-3″ = (2) M12 x 1 female thread. 4″ = (2) 12.5mm dia. * Available with various end connections. * Actuator can mount to existing butterfly valves.
