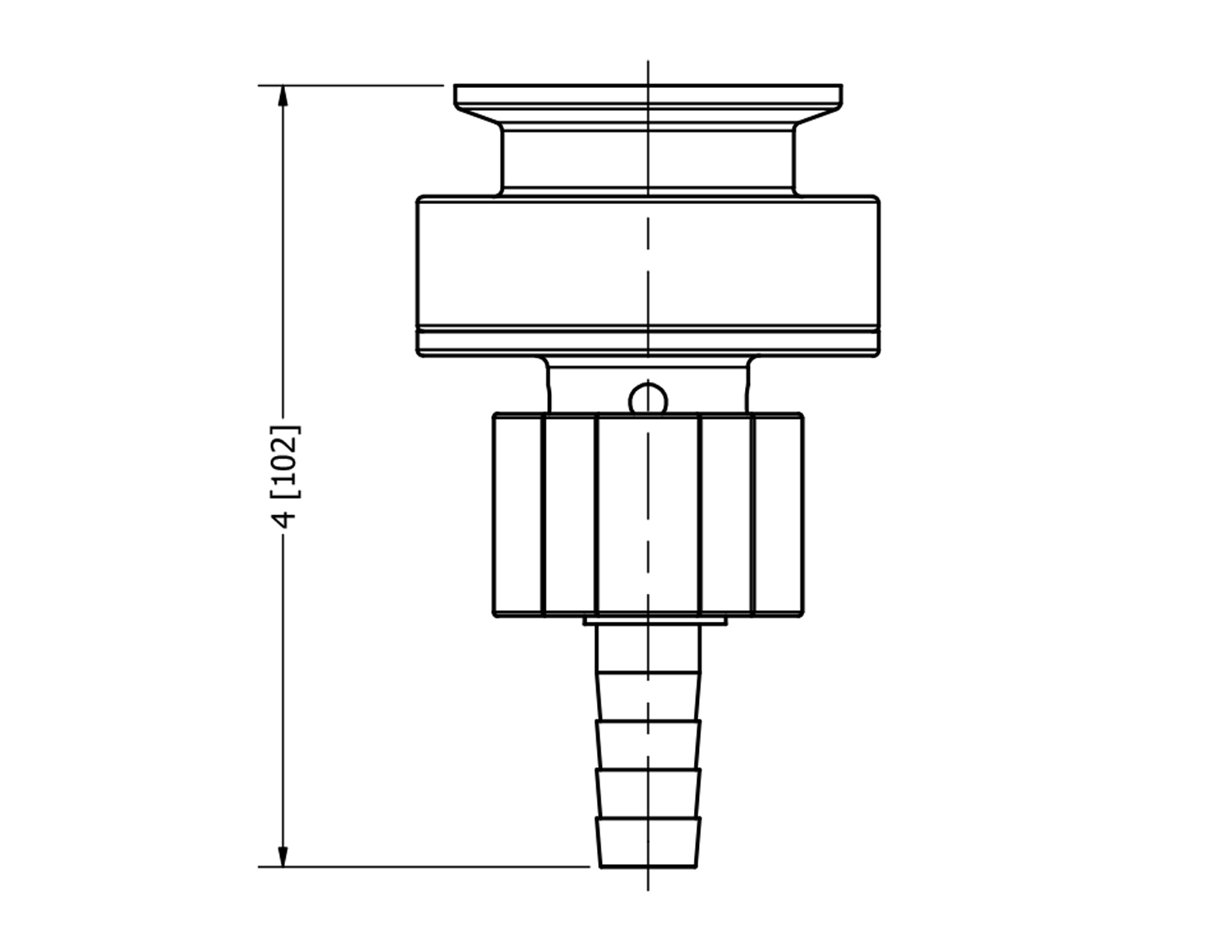

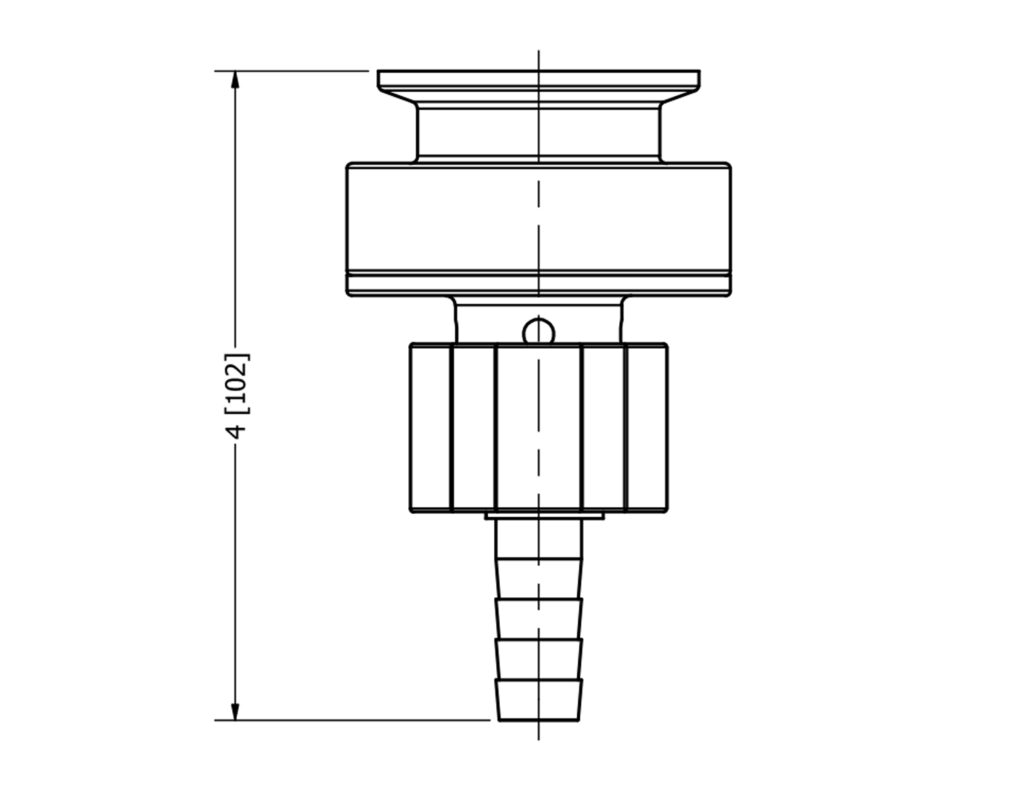

INN Type Sample Valve

If you are interested in this product, please contact us for further assistance.

Features:

Product Contact Surfaces
Body: 316L Stainless Steel
Stem: FDA/USP Class VI Certified Tecapeek® (PEEK)
O-Ring: FDA/USP Class VI Certified EPDM or FKM

Non Product Contact Surfaces
Knob: ULTEM® Polytherimide/PEI
Indicator: High temp yellow PVC
Hardware/Other Misc. Parts: Stainless Steel

Finish Specifications
Internal surface finishes per ASME BPE
SF1: 20Ra maximum
SF5: 20Ra maximum with Electropolish
SF4: 15Ra maximum with Electropolish
External surface finish: 32Ra maximum

Service Conditions
Maximum operating temperature: 300°F
Maximum operating pressure: 250 PSIG
Maximum SWP: 50 PSIG @ 298°F

Documentation
Material test reports (MTR) for 316L product contact surfaces
Certificate of compliance for FDA/USP Class VI PEEK stem
Certificate of compliance for FDA/USP Class VI FKM O-Ring
Certificate of compliance for FDA/USP Class VI EPDM O-Ring
Internal surface finish certification
Electropolish certification
Passivation certification
