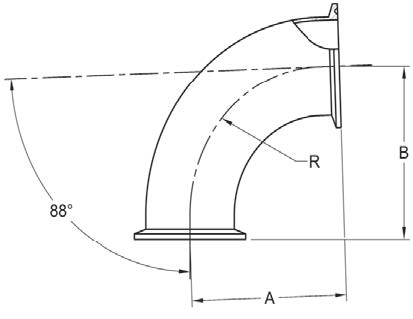

S2CMP88 88 DEGREE ELBOW, CLAMP ENDS
| Part Number | Size (inches) | A | B | R |
|---|---|---|---|---|
| S2CMP88-.50 | 1/2 | 1.642 | 1.642 | 1.13 |
| S2CMP88-.75 | 3/4 | 1.647 | 1.647 | 1.13 |
| S2CMP88-1 | 1 | 2.017 | 2.017 | 1.50 |
| S2CMP88-1.5 | 1 1/2 | 2.771 | 2.771 | 2.25 |
| S2CMP88-2 | 2 | 3.516 | 3.516 | 3.00 |
| S2CMP88-2.5 | 2 1/2 | 4.265 | 4.265 | 3.75 |
| S2CMP88-3 | 3 | 5.015 | 5.015 | 4.50 |
| S2CMP88-4 | 4 | 6.644 | 6.644 | 6.00 |
