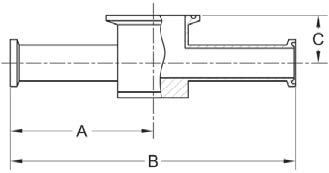

S7IMPS INSTRUMENT TEE, CLAMP ENDS
| Part Number | Size (inches) | A | B | C | STP File |
|---|---|---|---|---|---|
| S7IMPS-.50X1.5 | 1/2 X 1 1/2 | 3.000 | 6.000 | 0.875 | STP |
| S7IMPS-.75X1.5 | 3/4 X 1 1/2 | 3.000 | 6.000 | 1.000 | STP |
| S7IMPS-1X1.5 | 1 X 1 1/2 | 3.000 | 6.000 | 1.125 | STP |
| S7IMPS-.50X2 | 1/2 X 2 | 3.250 | 6.500 | 1.000 | STP |
| S7IMPS-.75X2 | 3/4 X 2 | 3.250 | 6.500 | 1.125 | |
| S7IMPS-1X2 | 1 X 2 | 3.250 | 6.500 | 1.250 | STP |
| S7IMPS-1.5X2 | 1 1/2 X 2 | 3.250 | 6.500 | 1.500 | STP |
