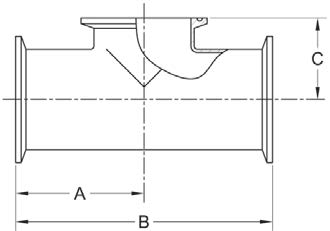

S7MPS TEE, CLAMP ENDS X SHORT CLAMP OUTLET
| Part Number | Size (inches) | A | B | C | STP File |
|---|---|---|---|---|---|
| S7MPS-.50 | 1/2 | 2.375 | 4.750 | 1.000 | STP |
| S7MPS-.75 | 3/4 | 2.500 | 5.000 | 1.125 | STP |
| S7MPS-1 | 1 | 2.625 | 5.250 | 1.125 | STP |
| S7MPS-1.5 | 1 1/2 | 2.875 | 5.750 | 1.375 | STP |
| S7MPS-2 | 2 | 3.375 | 6.750 | 1.625 | STP |
| S7MPS-2.5 | 2 1/2 | 3.625 | 7.750 | 1.875 | STP |
| S7MPS-3 | 3 | 3.875 | 7.750 | 2.125 | STP |
| S7MPS-4 | 4 | 4.750 | 9.500 | 2.750 | STP |
| S7MPS-6 | 6 | 7.125 | 14.250 | 4.625 | STP |
