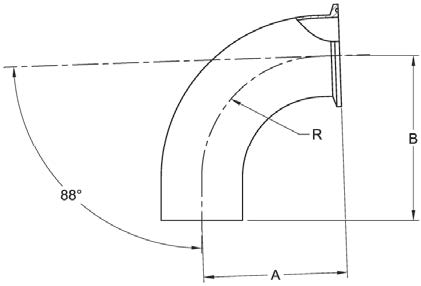

S2CKW88 88 DEGREE ELBOW, TANGENT WELD END X CLAMP

Part Number	Size (inches)	A	B	R
S2CKW88-.50	1/2	1.690	3.017	1.13
S2CKW88-.75	3/4	1.725	3.015	1.13
S2CKW88-1	1	2.051	3.017	1.50
S2CKW88-1.5	1 1/2	2.806	3.764	2.25
S2CKW88-2	2	3.559	4.766	3.00
S2CKW88-2.5	2 1/2	4.309	5.515	3.75
S2CKW88-3	3	5.058	6.265	4.50
S2CKW88-4	4	6.691	8.018	6.00
