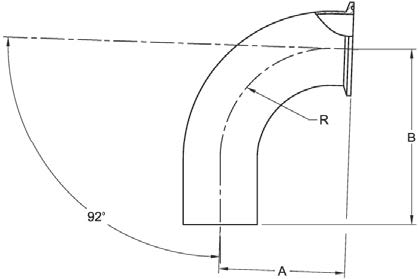

S2CKW92 92 DEGREE ELBOW, TANGENT WELD END X CLAMP
| Part Number | Size (inches) | A | B | R |
|---|---|---|---|---|
| S2CKW92-.50 | 1/2 | 1.511 | 2.983 | 1.13 |
| S2CKW92-.75 | 3/4 | 1.564 | 2.982 | 1.13 |
| S2CKW92-1 | 1 | 1.877 | 2.983 | 1.50 |
| S2CKW92-1.5 | 1 1/2 | 2.696 | 3.731 | 2.25 |
| S2CKW92-2 | 2 | 3.298 | 4.734 | 3.00 |
| S2CKW92-2.5 | 2 1/2 | 4.012 | 5.486 | 3.75 |
| S2CKW92-3 | 3 | 4.727 | 6.250 | 4.50 |
| S2CKW92-4 | 4 | 6.272 | 7.981 | 6.00 |
