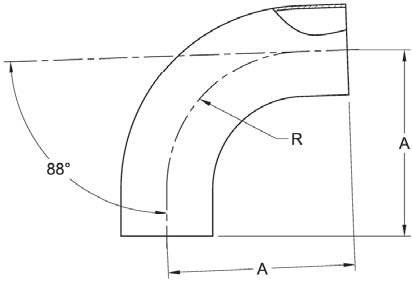

S2S88 88 DEGREE ELBOW, TANGENT WELD ENDS
| Part Number | Size (inches) | A | R | STP File |
|---|---|---|---|---|
| S2S88-.50 | 1/2 | 3.065 | 1.13 | STP |
| S2S88-.75 | 3/4 | 3.065 | 1.13 | STP |
| S2S88-1 | 1 | 3.051 | 1.50 | STP |
| S2S88-1.5 | 1 1/2 | 3.801 | 2.25 | STP |
| S2S88-2 | 2 | 4.809 | 3.00 | STP |
| S2S88-2.5 | 2 1/2 | 5.559 | 3.75 | STP |
| S2S88-3 | 3 | 6.308 | 4.50 | STP |
| S2S88-4 | 4 | 8.066 | 6.00 | STP |
