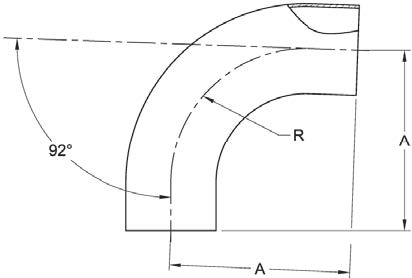

S2S92 92 DEGREE ELBOW, TANGENT WELD ENDS
| Part Number | Size (inches) | A | R | STP File |
|---|---|---|---|---|
| S2S92-.50 | 1/2 | 2.921 | 1.13 | STP |
| S2S92-.75 | 3/4 | 2.934 | 1.13 | STP |
| S2S92-1 | 1 | 2.947 | 1.50 | STP |
| S2S92-1.5 | 1 1/2 | 3.696 | 2.25 | STP |
| S2S92-2 | 2 | 4.687 | 3.00 | STP |
| S2S92-2.5 | 2 1/2 | 5.432 | 3.75 | STP |
| S2S92-3 | 3 | 6.181 | 4.50 | STP |
| S2S92-4 | 4 | 7.919 | 6.00 | STP |
