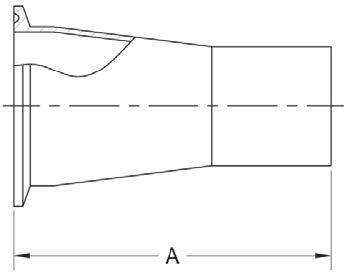

S31K CONCENTRIC REDUCER, CLAMP X TANGENT WELD END
| Part Number | Size (inches) | A | STP File |
|---|---|---|---|
| S31K-.75X.50 | 3/4 X 1/2 | 3.000 | STP |
| S31K-1X.50 | 1 X 1/2 | 3.500 | STP |
| S31K-1X.75 | 1 X 3/4 | 3.000 | STP |
| S31K-1.5X.50 | 1 1/2 X 1/2 | 4.500 | STP |
| S31K-1.5X.75 | 1 1/2 X 3/4 | 4.000 | STP |
| S31K-1.5X1 | 1 1/2 X 1 | 4.000 | STP |
| S31K-2X.50 | 2 X 1/2 | 6.500 | STP |
| S31K-2X.75 | 2 X 3/4 | 6.000 | STP |
| S31K-2X1 | 2 X 1 | 6.000 | STP |
| S31K-2X1.5 | 2 X 1 1/2 | 4.000 | STP |
| S31K-2.5X.50 | 2 1/2 X 1/2 | 8.500 | STP |
| S31K-2.5X.75 | 2 1/2 X 3/4 | 9.000 | |
| S31K-2.5X1 | 2 1/2 X 1 | 8.000 | STP |
| S31K-2.5X1.5 | 2 1/2 X 1 1/2 | 6.000 | STP |
| S31K-2.5X2 | 2 1/2 X 2 | 4.250 | STP |
| S31K-3X.50 | 3 X 1/2 | 12.000 | STP |
| S31K-3X.75 | 3 X 3/4 | 11.000 | STP |
| S31K-3X1 | 3 X 1 | 10.000 | |
| S31K-3X1.5 | 3 X 1 1/2 | 8.000 | STP |
| S31K-3X2 | 3 X 2 | 6.250 | STP |
| S31K-3X2.5 | 3 X 2 1/2 | 4.250 | STP |
| S31K-4X1 | 4 X 1 | 14.125 | STP |
| S31K-4X1.5 | 4 X 1 1/2 | 12.125 | |
| S31K-4X2 | 4 X 2 | 10.375 | STP |
| S31K-4X2.5 | 4 X 2 1/2 | 8.375 | STP |
| S31K-4X3 | 4 X 3 | 6.375 | STP |
| S31K-6X3 | 6 X 3 | 9.000 | STP |
| S31K-6X4 | 6 X 4 | 9.000 | STP |
