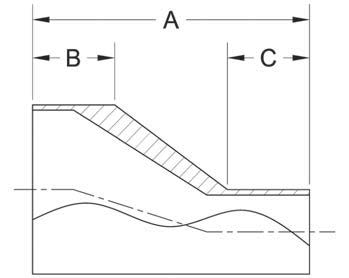

S32S SHORT ECCENTRIC REDUCER, WELD ENDS
| Part Number | Size (inches) | A | B (min.) | C (min.) | STP File |
|---|---|---|---|---|---|
| S32S-.75X.50 | 3/4 X 1/2 | 2.125 | 1.000 | 1.000 | STP |
| S32S-1X.50 | 1 X 1/2 | 2.500 | 1.000 | 1.000 | STP |
| S32S-1X.75 | 1 X 3/4 | 2.125 | 1.000 | 1.000 | STP |
| S32S-1.5X.75 | 1 1/2 X 3/4 | 3.000 | 1.000 | 1.000 | STP |
| S32S-1.5X1 | 1 1/2 X 1 | 2.500 | 1.000 | 1.000 | STP |
| S32S-2X1 | 2 X 1 | 3.375 | 1.000 | 1.000 | STP |
| S32S-2X1.5 | 2 X 1 1/2 | 2.500 | 1.000 | 1.000 | STP |
| S32S-2.5X1.5 | 2 1/2 X 1 1/2 | 3.375 | 1.000 | 1.000 | STP |
| S32S-2.5X2 | 2 1/2 X 2 | 2.500 | 1.000 | 1.000 | STP |
| S32S-3X1.5 | 3 X 1 1/2 | 4.250 | 1.500 | 1.000 | STP |
| S32S-3X2 | 3 X 2 | 3.375 | 1.500 | 1.000 | STP |
| S32S-3X2.5 | 3 X 2 1/2 | 2.625 | 1.500 | 1.000 | STP |
| S32S-4X2 | 4 X 2 | 5.125 | 1.500 | 1.000 | STP |
| S32S-4X2.5 | 4 X 2 1/2 | 4.250 | 1.500 | 1.000 | STP |
| S32S-4X3 | 4 X 3 | 3.875 | 1.500 | 1.500 | STP |
| S32S-6X3 | 6 X 3 | 7.250 | 2.000 | 1.500 | STP |
| S32S-6X4 | 6 X 4 | 5.625 | 2.000 | 1.500 | STP |
