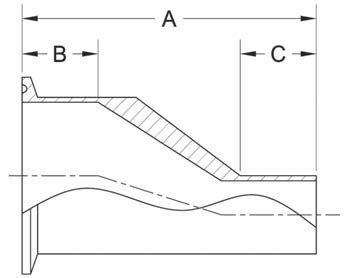

S32SK SHORT ECCENTRIC REDUCER, CLAM X WELD END
| Part Number | Size (inches) | A | B (I.D) (min.) | C (min.) | STP File |
|---|---|---|---|---|---|
| S32SK-.75X.50 | 3/4 X 1/2 | 2.625 | 0.375 | 1.000 | STP |
| S32SK-1X.50 | 1 X 1/2 | 3.000 | 0.375 | 1.000 | STP |
| S32SK-1X.75 | 1 X 3/4 | 2.625 | 0.375 | 1.000 | STP |
| S32SK-1.5X.75 | 1 1/2 X 3/4 | 3.500 | 0.375 | 1.000 | STP |
| S32SK-1.5X1 | 1 1/2 X 1 | 3.000 | 0.375 | 1.000 | |
| S32SK-2X1 | 2 X 1 | 3.875 | 0.375 | 1.000 | STP |
| S32SK-2X1.5 | 2 X 1 1/2 | 3.000 | 0.375 | 1.000 | STP |
| S32SK-2.5X1.5 | 2 1/2 X 1 1/2 | 3.875 | 0.375 | 1.000 | |
| S32SK-2.5X2 | 2 1/2 X 2 | 3.000 | 0.375 | 1.000 | STP |
| S32SK-3X1.5 | 3 X 1 1/2 | 4.750 | 0.375 | 1.000 | STP |
| S32SK-3X2 | 3 X 2 | 3.875 | 0.375 | 1.000 | STP |
| S32SK-3X2.5 | 3 X 2 1/2 | 3.125 | 0.375 | 1.000 | STP |
| S32SK-4X2 | 4 X 2 | 5.750 | 0.375 | 1.000 | STP |
| S32SK-4X2.5 | 4 X 2 1/2 | 4.875 | 0.375 | 1.000 | STP |
| S32SK-4X3 | 4 X 3 | 4.500 | 0.375 | 1.500 | STP |
| S32SK-6X3 | 6 X 3 | 8.000 | 0.375 | 1.500 | |
| S32SK-6X4 | 6 X 4 | 6.375 | 0.375 | 1.500 |
