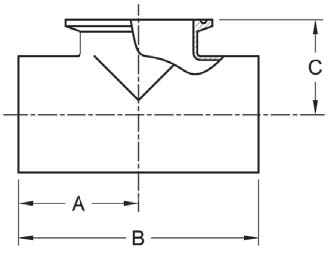

S7SWWK TEE, TANGENT WELD ENDS X SHORT CLAMP OUTLET
| Part Number | Size (inches) | A | B | C | STP File |
|---|---|---|---|---|---|
| S7SWWK-.50 | 1/2 | 1.875 | 3.750 | 1.000 | STP |
| S7SWWK-.75 | 3/4 | 2.000 | 4.000 | 1.125 | STP |
| S7SWWK-1 | 1 | 2.125 | 4.250 | 1.125 | STP |
| S7SWWK-1.5 | 1 1/2 | 2.375 | 4.750 | 1.375 | STP |
| S7SWWK-2 | 2 | 2.875 | 5.750 | 1.625 | STP |
| S7SWWK-2.5 | 2 1/2 | 3.125 | 6.250 | 1.875 | STP |
| S7SWWK-3 | 3 | 3.375 | 6.750 | 2.125 | STP |
| S7SWWK-4 | 4 | 4.125 | 8.250 | 2.750 | STP |
| S7SWWK-6 | 6 | 5.625 | 11.250 | 4.625 | STP |
