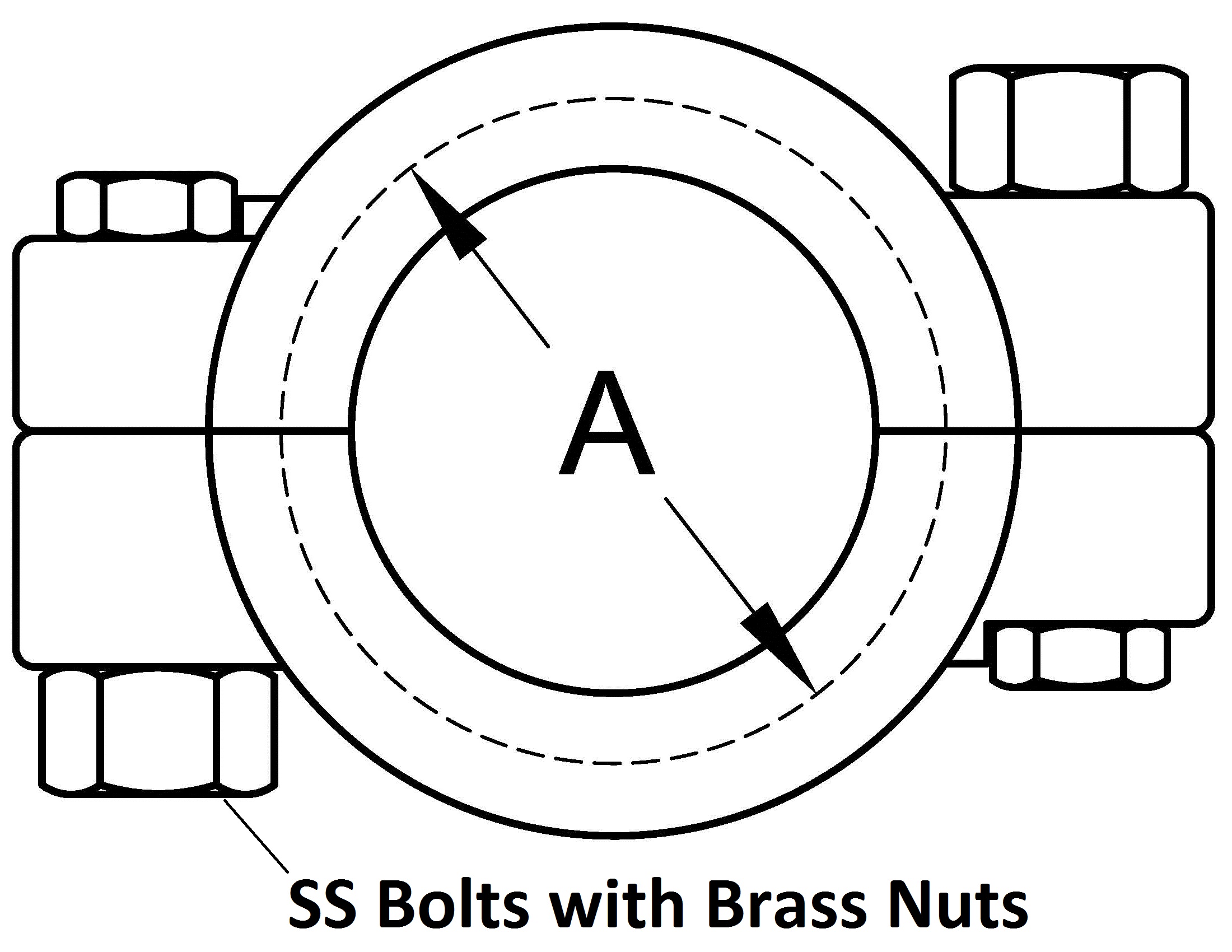

Part NumberSize (inches)APressure Rating @ 70°F.Pressure Rating @ 250°F.STP File

13MHP-.50

 1/2 & 3/4 1.125 1500 1200 STP

13MHP-1

 1 & 1 1/2 2.046 1000 800 STP

13MHP-2

 2 2.596 1000 800 STP

13MHP-2.5

 2 1/2 3.127 1000 800 STP

13MHP-3

 3 3.659 1000 800 STP

13MHP-4

 4 4.762 800 600 STP

13MHP-5

 5 5.762 300 200 —

13MHP-6

 6 6.695 300 200 —

13MHP-8

 8 8.695 250 150 —

13MHP-10

 10 10.695 200 125 —

13MHP-12

 12 12.695 150 100 —

Steel & O’Brien offers a wide selection of 13MHP high-pressure clamps in a variety of sizes and pressure ratings. Our high-pressure sanitary clamps provide a leak-proof connection to tubing or other types of fittings. We’re always working hard to make sanitary simple for our customers, and the extensive inventory of high-pressure tri clamps we provide stands as further proof of our commitment. Here you’ll find parts ranging in size from ½ inch all the way up to 12 inches, with pressure ratings between 100 and 1200 at 250 degrees Fahrenheit. Available in 304 or 316 material. Pressure ratings are maximum working pressure only. Pressure ratings pertain to the clamp “union”. Supplied with brass hex nuts.

Features:

Our sanitary high-pressure clamps are available in 304 or 316 material. Pressure ratings are maximum working pressure only. Pressure ratings pertain to the clamp “union”. Our high-pressure tri clamp is supplied with brass hex nuts.

To learn more about our complete range of 13MHP clamps or other offerings, click here to download our Sanitary Products Catalog or get in touch with one of our experienced representatives.
