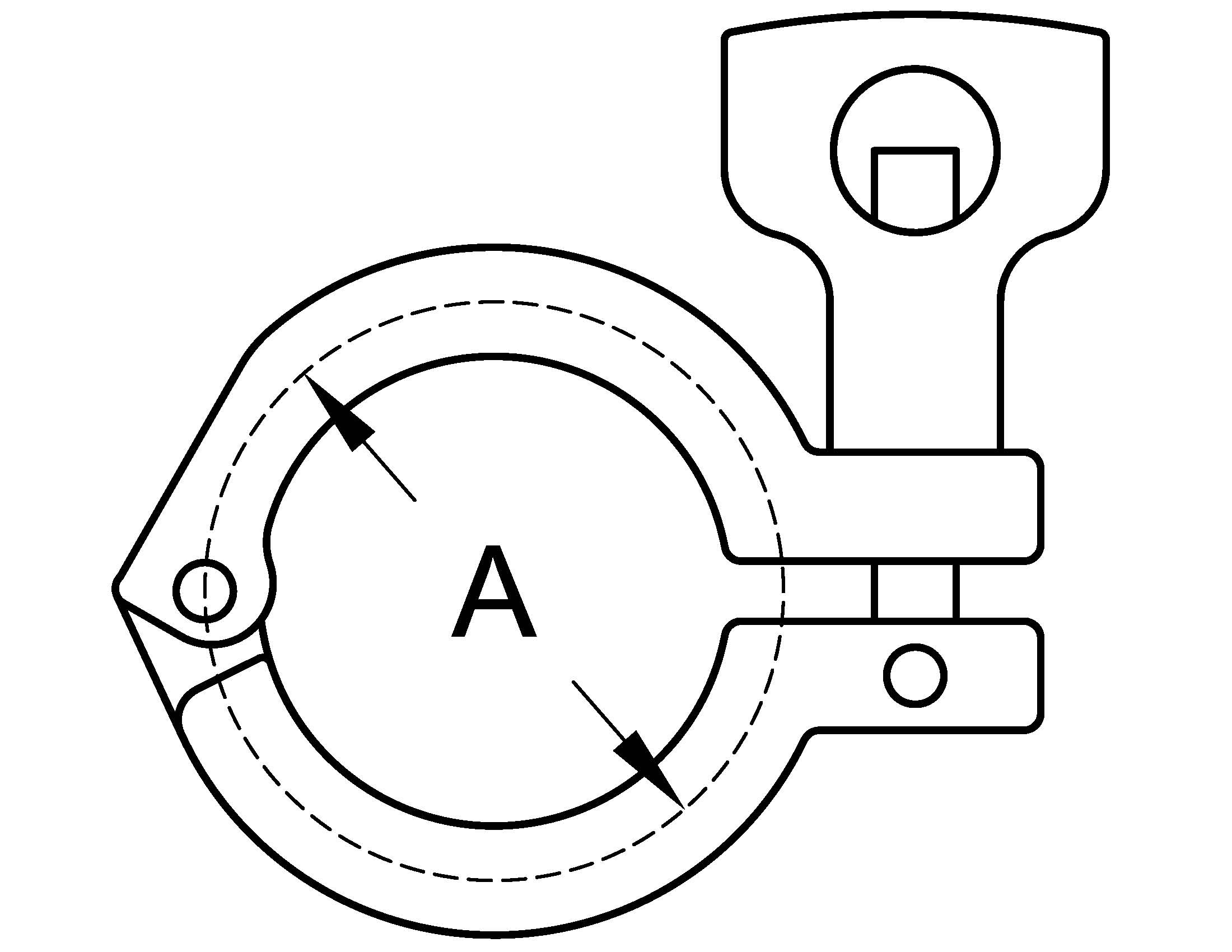

Part NumberSize (inches)APressure Rating @ 70°F.Pressure Rating @ 250°F.STP File

13MHHM-.50

 1/2 & 3/4 1.125 1500 1200 STP

13MHHM-1

 1 & 1 1/2 2.122 500 300 STP

13MHHM-2

 2 2.654 450 300 STP

13MHHM-2.5

 2 1/2 3.185 400 200 STP

13MHHM-3

 3 3.717 350 195 STP

13MHHM-4

 4 4.820 300 150 STP

13MHHM-5

 5 5.825 150 75 STP

13MHHM-6

 6 6.695 150 75 STP

13MHHM-8

 8 8.695 100 50 STP

13MHHM-10

 10 10.695 75 40 STP

13MHHM-12

 12 12.695 50 25 STP

Features:

Note: Also available with rocket wing nut. Available in 304 or 316 material. Pressure ratings are maximum working pressure only. Pressure ratings pertain to the clamp “union”
