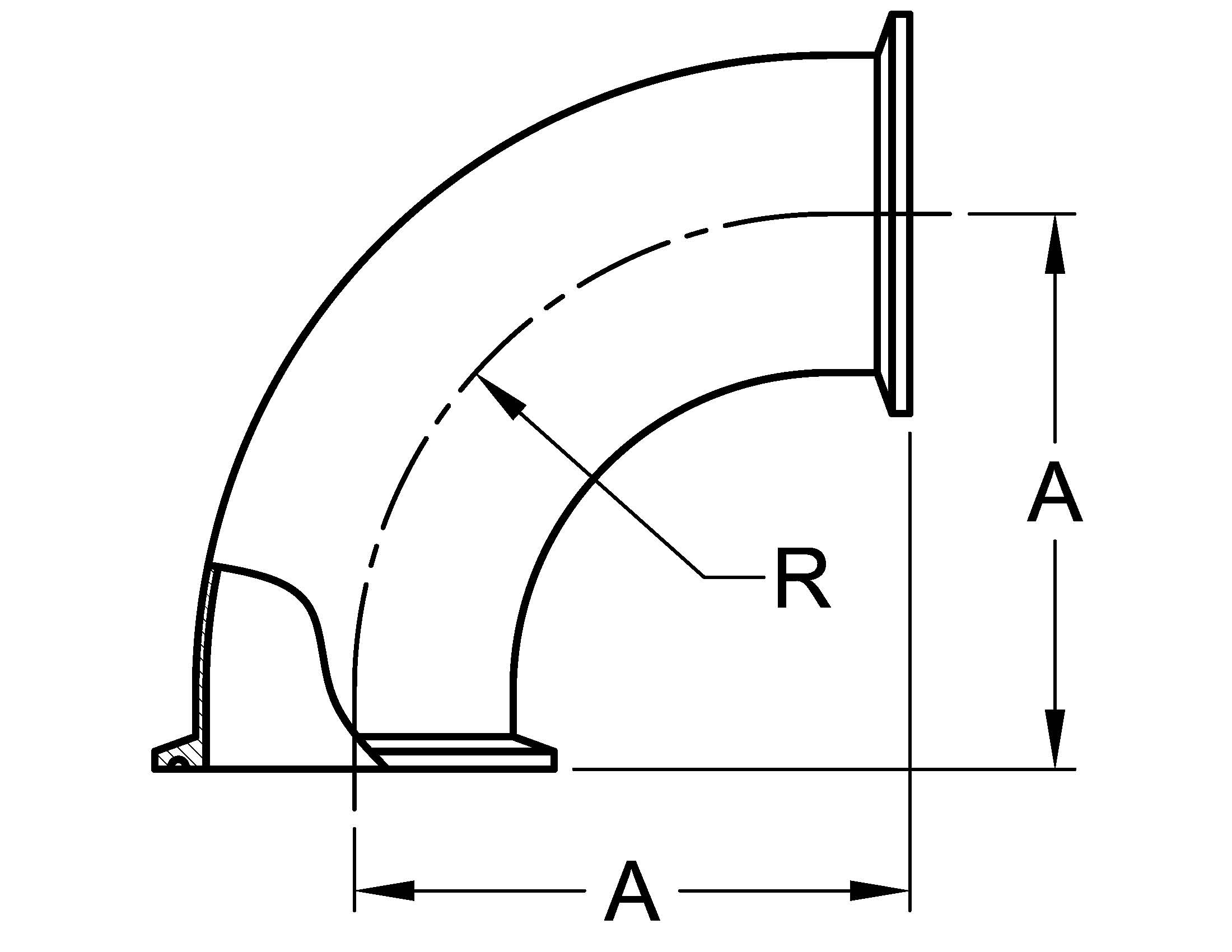

2CMP 90 DEGREE ELBOW, CLAMP ENDS
| Part Number | Size (inches) | A | R | STP File | PDF File |
|---|---|---|---|---|---|
| 2CMP-.50 | 1/2 | 1.25 | 0.75 | STP | |
| 2CMP-.50L | 1/2 | 1.625 | 1.13 | STP | |
| 2CMP-.75 | 3/4 | 1.625 | 1.13 | STP | |
| 2CMP-1 | 1 | 2.000 | 1.50 | STP | |
| 2CMP-1.5 | 1 1/2 | 2.750 | 2.25 | STP | |
| 2CMP-2 | 2 | 3.500 | 3.00 | STP | |
| 2CMP-2.5 | 2 1/2 | 4.250 | 3.75 | STP | |
| 2CMP-3 | 3 | 5.000 | 4.50 | STP | |
| 2CMP-4 | 4 | 6.625 | 6.00 | STP | |
| 2CMP-6 | 6 | 9.875 | 9.00 | STP | |
| 2CMP-8 | 8 | 12.875 | 12.00 | STP |
