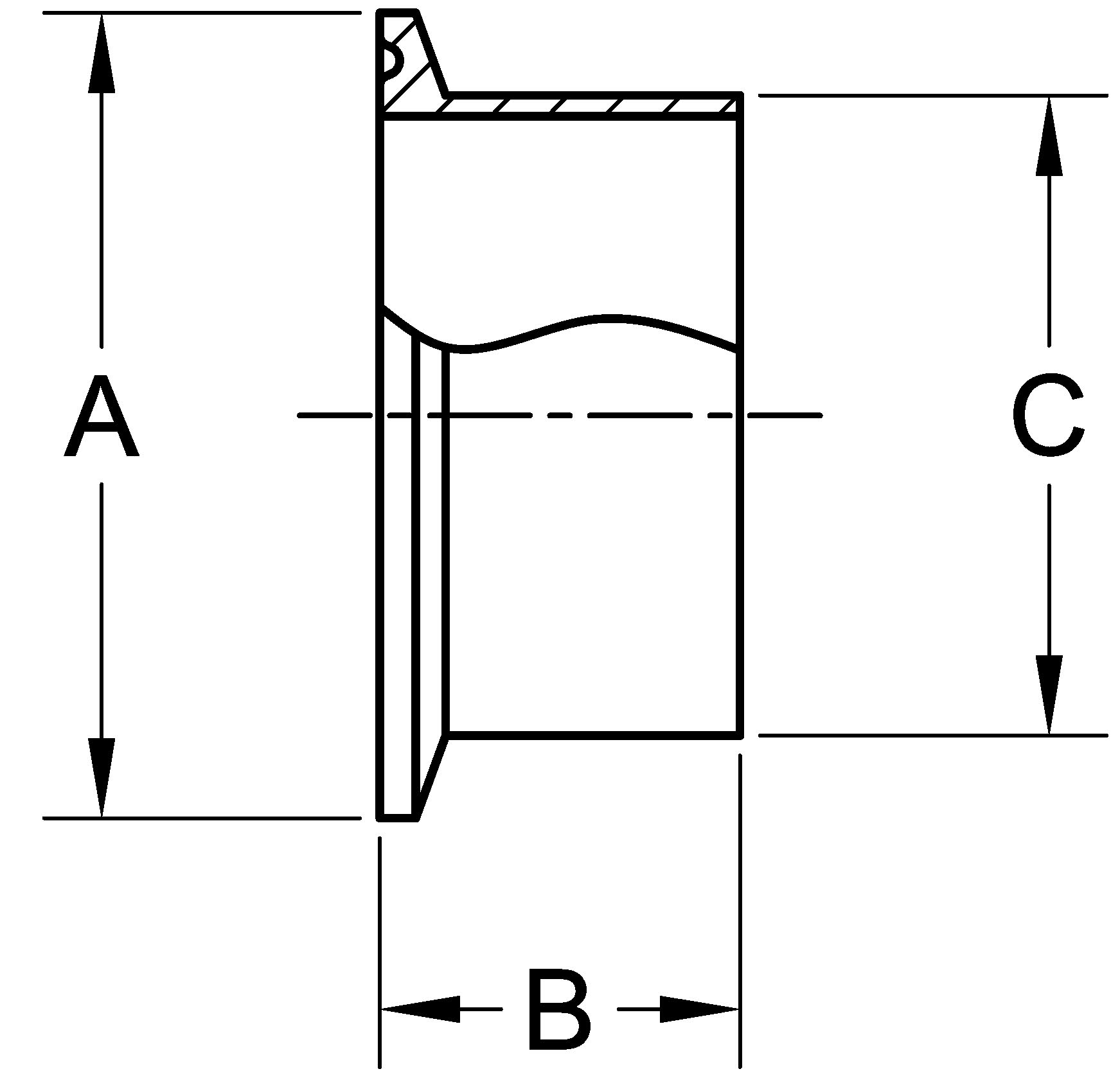

DN14WMPAS DN 32676 CLAMP X METRIC TUBE WELD
| Part Number | Size (inches) | A | B | C |
|---|---|---|---|---|
| DN14WMPMAS-DN20 | DIN 20 | 1.339 | 0.709 | 0.906 |
| DN14WMPMAS-DN25 | DIN 25 | 1.988 | 0.846 | 1.142 |
| DN14WMPMAS-DN40 | DIN 40 | 1.988 | 0.846 | 1.614 |
| DN14WMPMAS-DN50 | DIN 50 | 2.520 | 0.846 | 2.087 |
| DN14WMPMAS-DN80 | DIN 80 | 4.173 | 1.102 | 3.346 |
| DN14WMPMAS-DN100 | DIN 100 | 4.685 | 1.102 | 4.094 |
