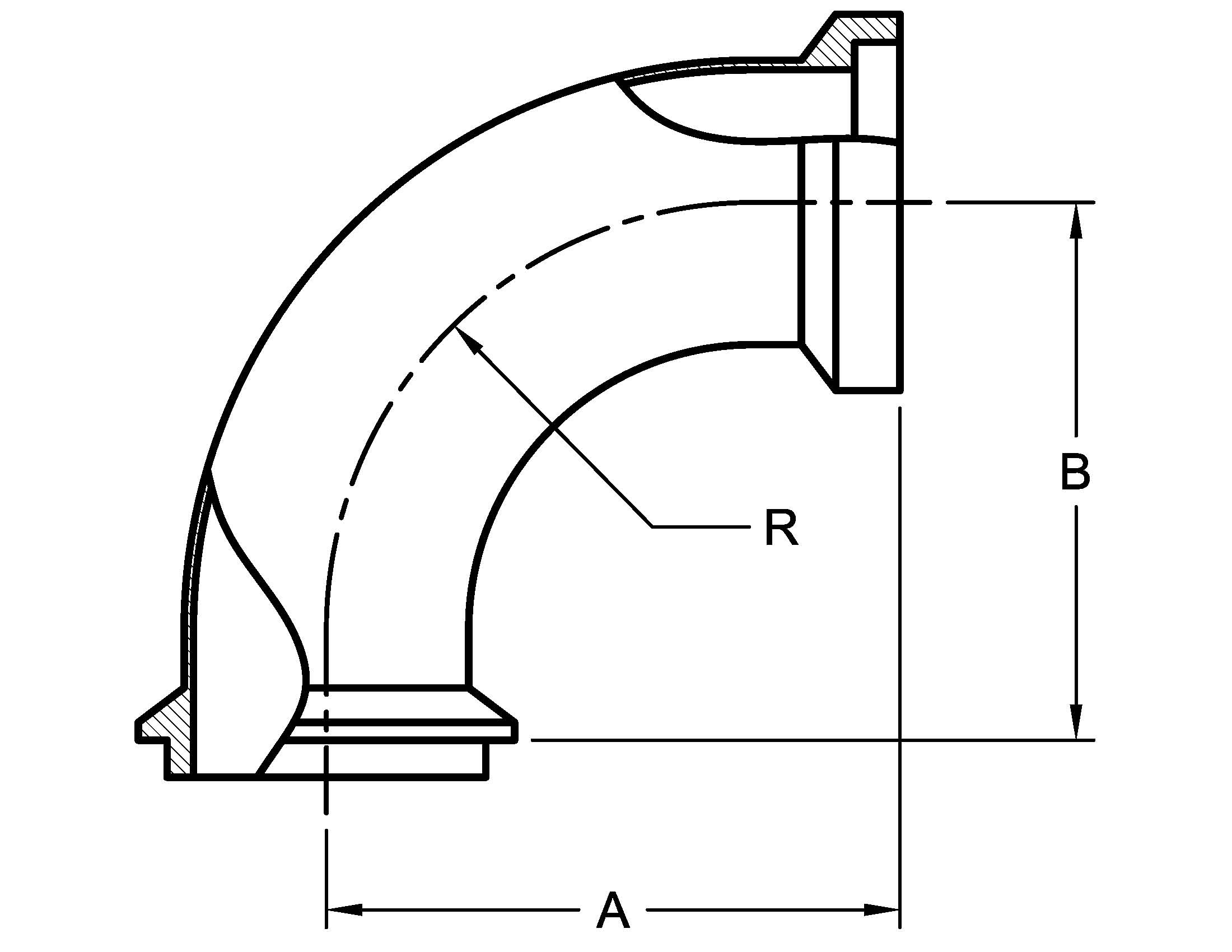

2FI 90 DEGREE ELBOW, FEMALE X MALE ENDS
| Part Number | Size (inches) | A | B | R |
|---|---|---|---|---|
| 2FI-1 | 1 | 2.286 | 2.089 | 1.50 |
| 2FI-1.5 | 1 1/2 | 3.192 | 2.996 | 2.25 |
| 2FI-2 | 2 | 4.036 | 3.780 | 3.00 |
| 2FI-2.5 | 2 1/2 | 4.911 | 4.600 | 3.75 |
| 2FI-3 | 3 | 5.723 | 5.412 | 4.50 |
| 2FI-4 | 4 | 7.348 | 7.037 | 6.00 |
| Part Number | Size (inches) | A | B | R |
|---|---|---|---|---|
| 2FI-1 | 1 | 2.286 | 2.089 | 1.50 |
| 2FI-1.5 | 1 1/2 | 3.192 | 2.996 | 2.25 |
| 2FI-2 | 2 | 4.036 | 3.780 | 3.00 |
| 2FI-2.5 | 2 1/2 | 4.911 | 4.600 | 3.75 |
| 2FI-3 | 3 | 5.723 | 5.412 | 4.50 |
| 2FI-4 | 4 | 7.348 | 7.037 | 6.00 |
