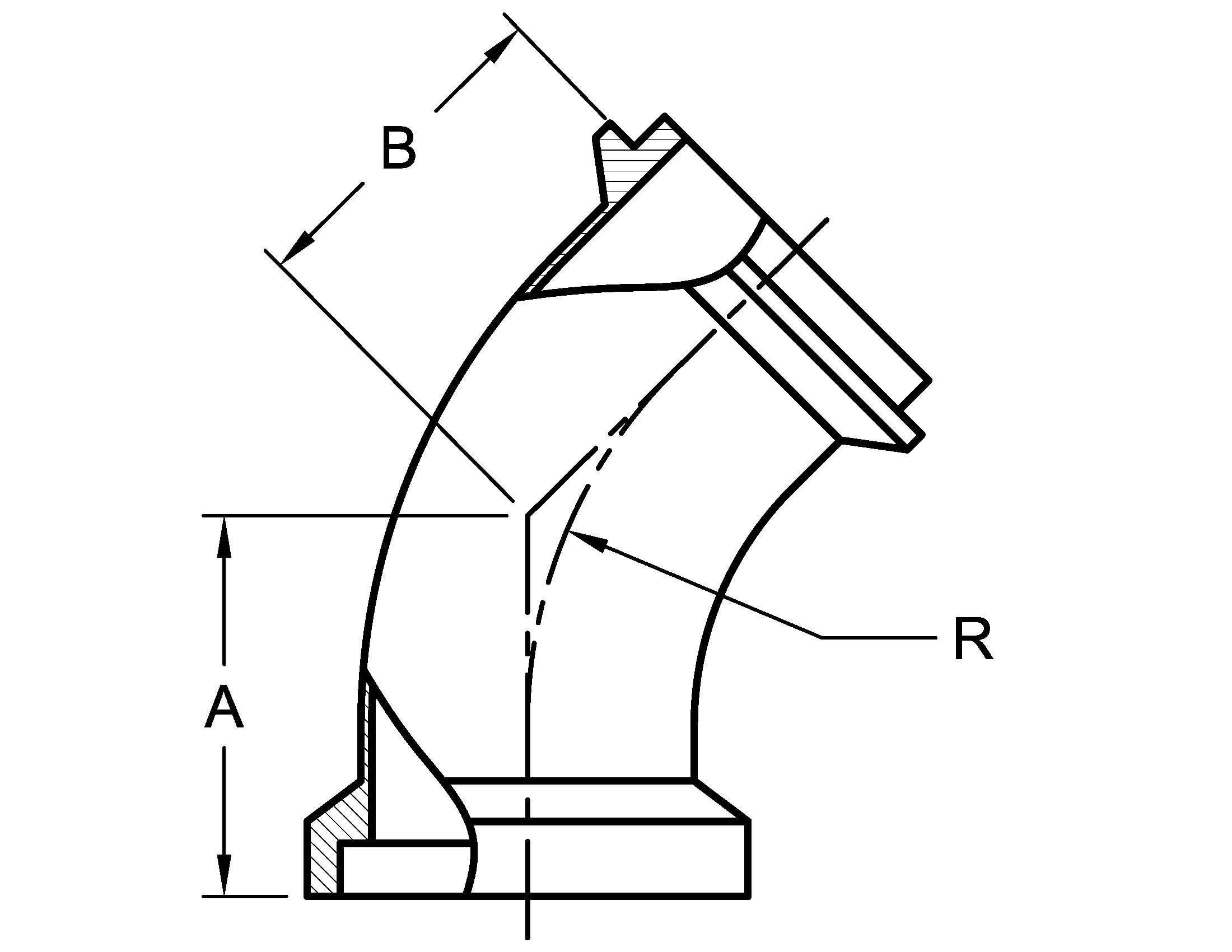

2PI 45 DEGREE ELBOW, FEMALE X MALE ENDS
| Part Number | Size (inches) | A | B | R |
|---|---|---|---|---|
| 2PI-1 | 1 | 1.411 | 1.214 | 1.50 |
| 2PI-1.5 | 1 1/2 | 1.879 | 1.526 | 2.25 |
| 2PI-2 | 2 | 2.286 | 2.030 | 3.00 |
| 2PI-2.5 | 2 1/2 | 2.723 | 2.412 | 3.75 |
| 2PI-3 | 3 | 3.098 | 2.787 | 4.50 |
| 2PI-4 | 4 | 3.848 | 3.537 | 6.00 |
