Features:
Note: Sizes are listed clamp x pipe. Other lengths also in stock.

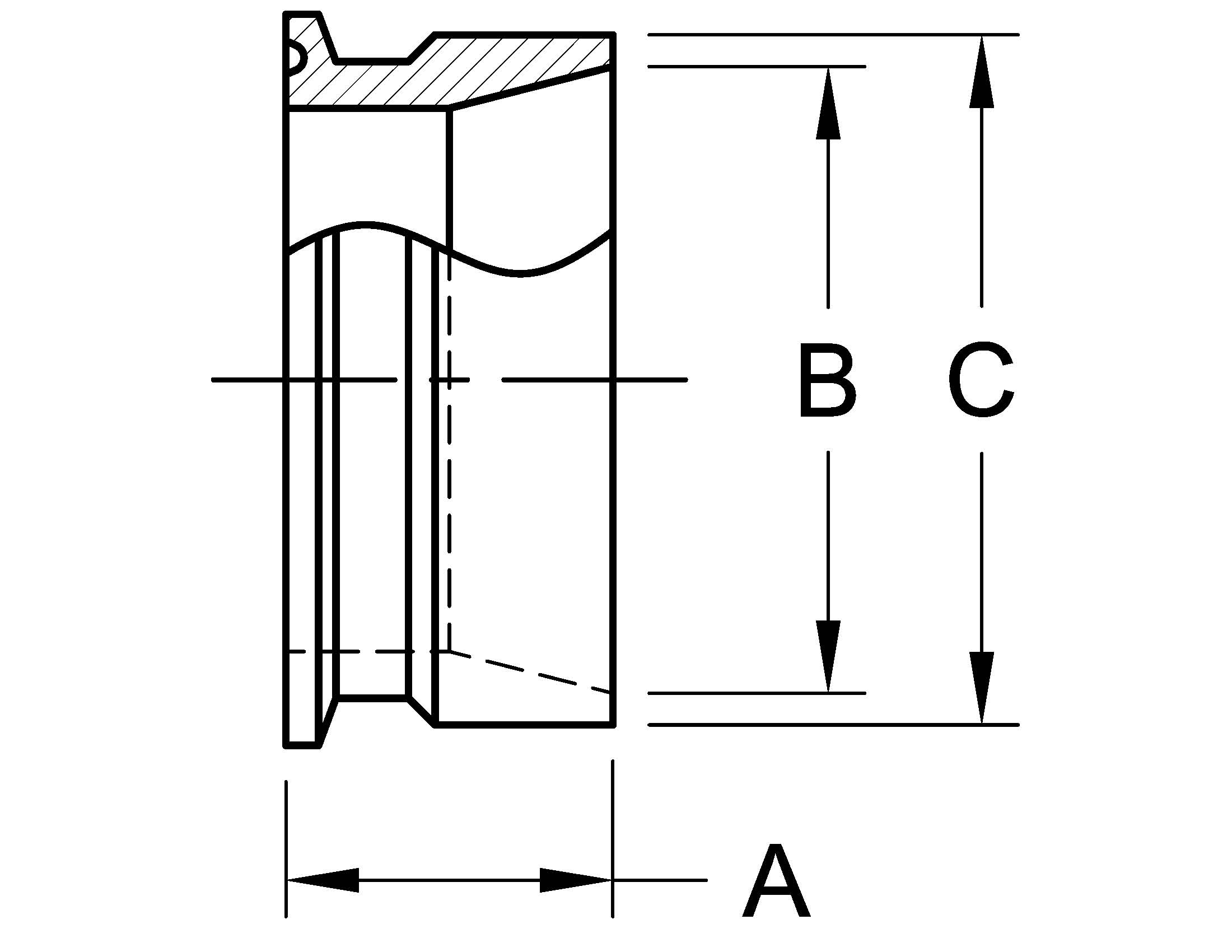

19MPX CLAMP X SCHEDULE 10 PIPE ADAPTER
| Part Number | Size (inches) | A | B | C |
|---|---|---|---|---|
| 19MPX-.50 | 1/2 | 1.500 | 0.674 | 0.840 |
| 19MPX-.75 | 3/4 | 1.500 | 0.884 | 1.050 |
| 19MPX-1 | 1 | 1.125 | 1.097 | 1.315 |
| 19MPX-1.5 | 1 1/2 | 1.125 | 1.682 | 1.900 |
| 19MPX-2 | 2 | 1.125 | 2.157 | 2.375 |
| 19MPX-2.5 | 2 1/2 | 1.125 | 2.635 | 2.875 |
| 19MPX-3 | 3 | 1.125 | 3.260 | 3.500 |
| 19MPX-4 | 4 | 1.125 | 4.260 | 4.500 |
| 19MPX-6 | 6 | 1.125 | 6.357 | 6.625 |
