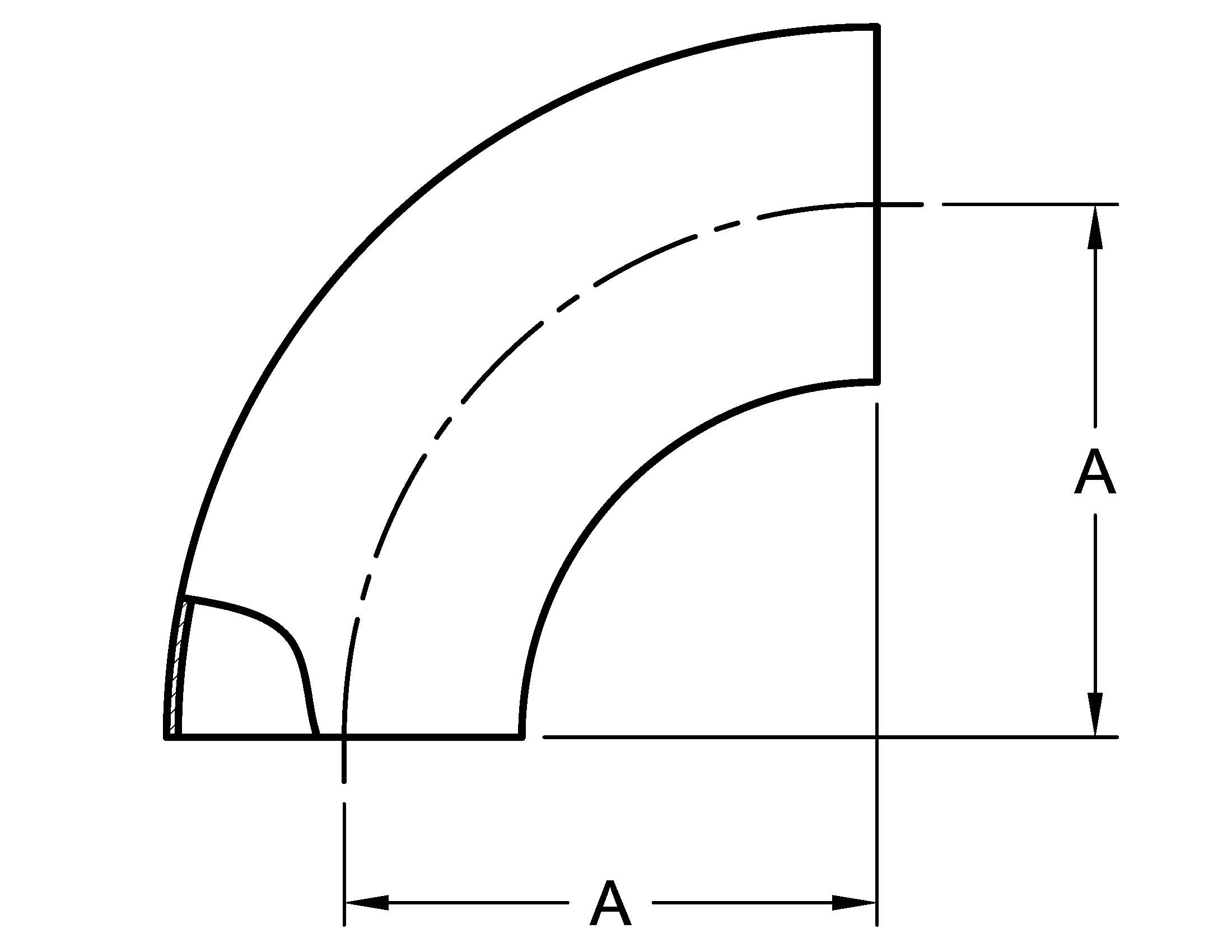

2WCL 90 DEGREE ELBOW, WELD ENDS
| Part Number | Size (inches) | A | STP File |
|---|---|---|---|
| 2WCL-.50 | 1/2 | 0.750 | STP |
| 2WCL-.50L | 1/2 | 1.125 | STP |
| 2WCL-.75 | 3/4 | 1.125 | STP |
| 2WCL-1 | 1 | 1.500 | STP |
| 2WCL-1.5 | 1 1/2 | 2.250 | STP |
| 2WCL-2 | 2 | 3.000 | STP |
| 2WCL-2.5 | 2 1/2 | 3.750 | STP |
| 2WCL-3 | 3 | 4.500 | STP |
| 2WCL-4 | 4 | 6.000 | STP |
| 2WCL-6 | 6 | 9.000 | STP |
| 2WCL-8 | 8 | 12.000 | STP |
| 2WCL-10 | 10 | 15.000 | STP |
| 2WCL-12 | 12 | 18.000 | STP |
