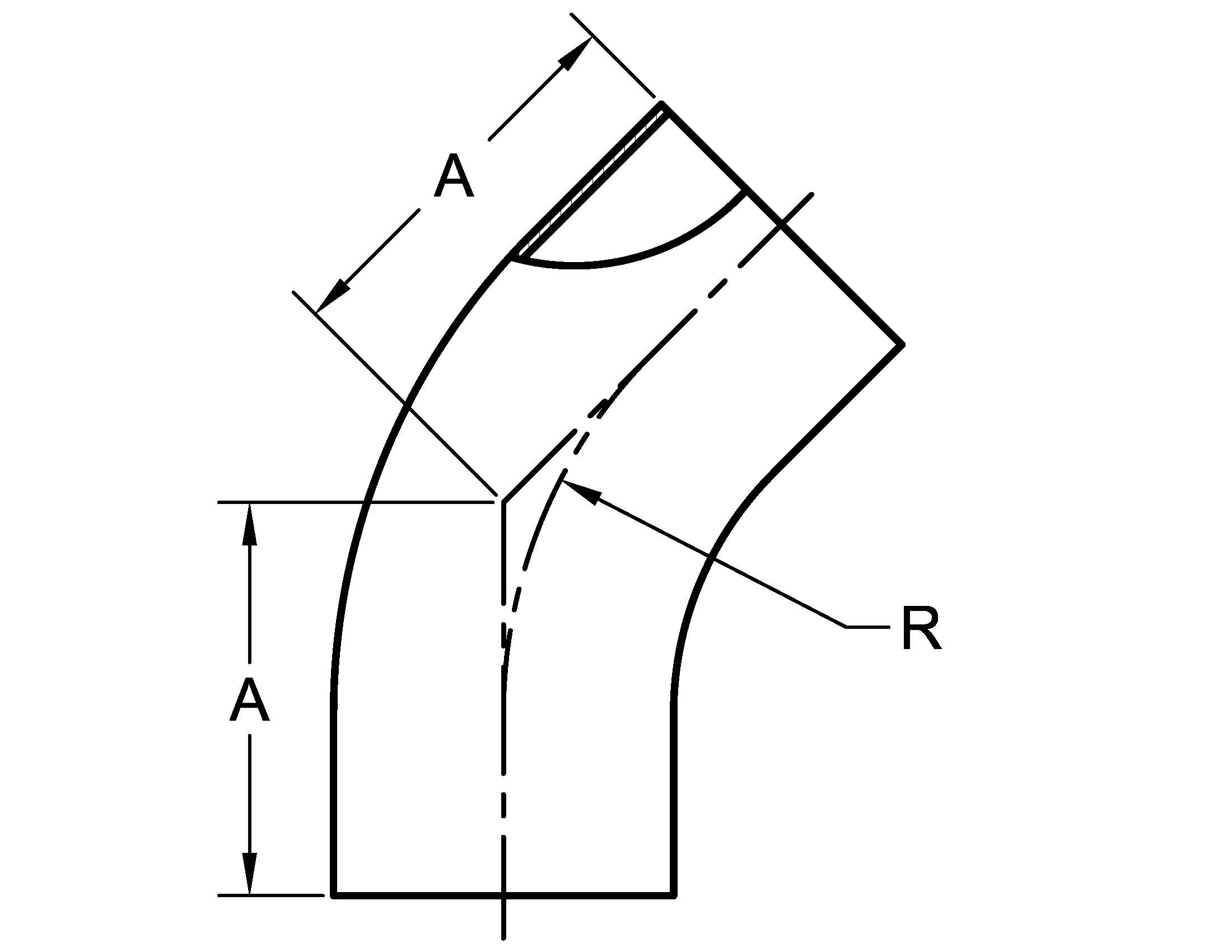

L2KS 45 DEGREE ELBOW, TANGENT WELD ENDS
| Part Number | Size (inches) | A | R | STP File |
|---|---|---|---|---|
| L2KS-.50 | 1/2 | 2.250 | 0.75 | STP |
| L2KS-.50L | 1/2 | 2.250 | 1.13 | STP |
| L2KS-.75 | 3/4 | 2.250 | 1.13 | STP |
| L2KS-1 | 1 | 1.188 | 1.50 | STP |
| L2KS-1.5 | 1 1/2 | 1.625 | 2.25 | STP |
| L2KS-2 | 2 | 2.312 | 3.00 | STP |
| L2KS-2.5 | 2 1/2 | 3.000 | 3.75 | STP |
| L2KS-3 | 3 | 3.688 | 4.50 | STP |
| L2KS-4 | 4 | 4.812 | 6.00 | STP |
| L2KS-6 | 6 | 7.500 | 9.00 | STP |
