These see-through spool sections are ideal for simple and quick sight requirements. Made from ASTM 5436-D, FDA-conforming acrylic, our tubes can be clamped into your sanitary line seamlessly.

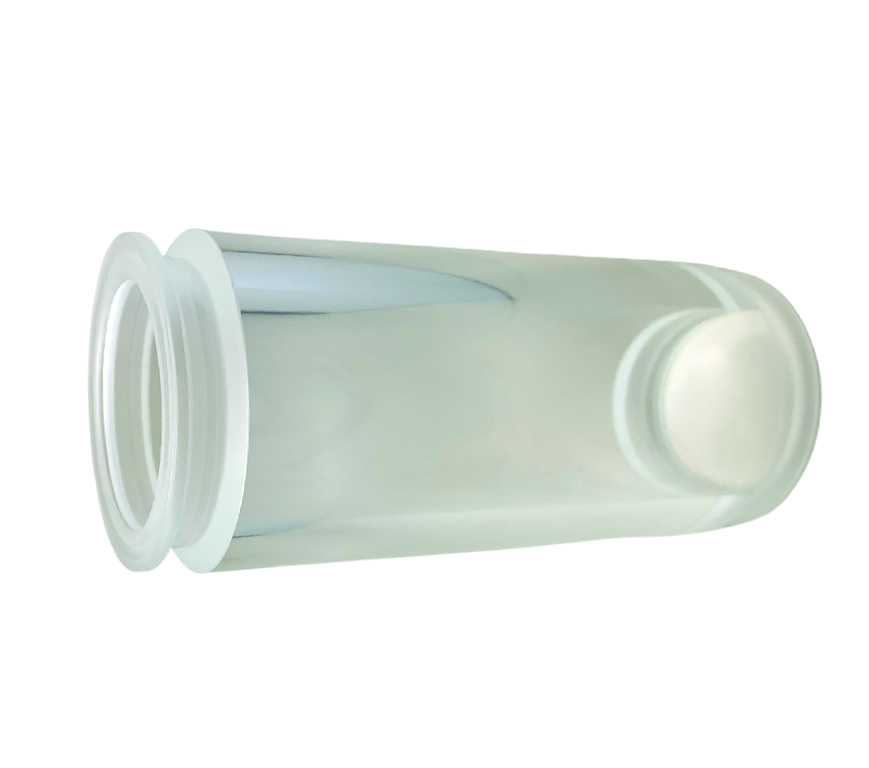

Clear Acrylic Sight Tubes
| Part Number | Clamp Size | Length | Maximum Cold Working Pressure (PSI) (@70°F) | Pressure (PSI) @ Maximum Allowable Temp. (@140°F) | Inside Diameter (Reference ID) | Outside Diameter (Reference OD) |
|---|---|---|---|---|---|---|
| 54SPOOLMP-1.5X5.875 | 1.5" | 5.875" | 145 | 100 | 1.295" | 2" |
| 54SPOOLMP-2X5.875 | 2" | 5.875" | 145 | 100 | 1.835" | 2.625" |
| 54SPOOLMP-3X7.500 | 3" | 7.500" | 120 | 75 | 2.817" | 3.625" |
| 54SPOOLMP-4X7.625 | 4" | 7.625" | 75 | 30 | 3.750" | 4.750" |
Features:
- Clear acrylic sight tubes are ideal for simple sight requirements as well as tank level indication
- These acrylic tubes comply with the code of federal regulations CFR177.1010
- An economical option to standard stainless steel sight glasses
- Standard clamp torque is required (25 in/lbs)
- The minimum length is 1.25” OAL
- Other sizes priced on the application
- Pressure ratings absent thermal shock
Not recommended for use with abrasive products. Do not use 2-bolt high-pressure clamps
