Cross style sight glasses provide a clear view of your process. Same dimensions as standard clamp tees and crosses, makes for a quick installation. Made with borosilicate glass and sealed with buna gaskets.

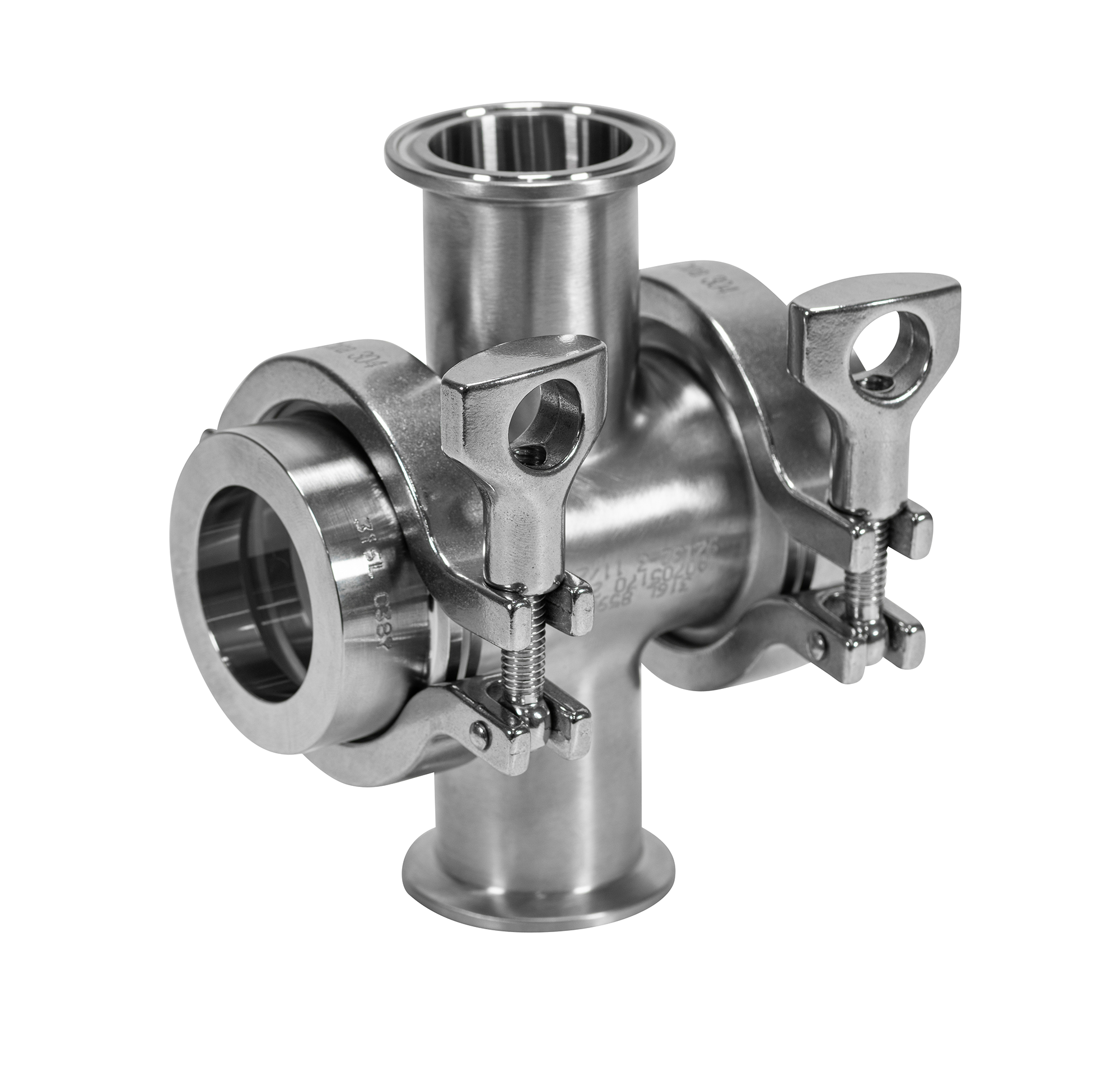

CROSS STYLE SIGHT GLASS
| Part Number | Size (inches) | A | B |
|---|---|---|---|
| 54MPSW-1 | 1 | 4.625 | 2.375 |
| 54MPSW-1.5 | 1 1/2 | 4.625 | 2.750 |
| 54MPSW-2 | 2 | 5.125 | 3.500 |
| 54MPSW-2.5 | 2 1/2 | 6.500 | 3.500 |
| 54MPSW-3 | 3 | 6.125 | 3.750 |
| 54MPSW-4 | 4 | 7.625 | 4.500 |
