TOP-FLO® L-Pattern Diaphragm Valves

Contact Us

If you are interested in this product, please contact us for further assistance.

Steel & O’Brien for years has specialized in manufacturing custom fabricated products designed specifically to meet our customers’ requirements. Our primary objective has always been to design and manufacture these specialty products by using state-of-the-art manufacturing practices and technologies. Steel & O’Brien and its affiliates employ engineers with a vast range of expertise and knowledge in the bioprocessing and pharmaceutical industries. The benefit of this is our ability to provide quick and accurate solutions to even the most complicated problems that occur in the field. All specialty products are manufactured using good manufacturing practices and are put through a very rigid quality control inspection before leaving our facility. These practices ensure that our customers receive quality parts ready for immediate installation. 100% BPE Compliant with full material traceability.

Features:

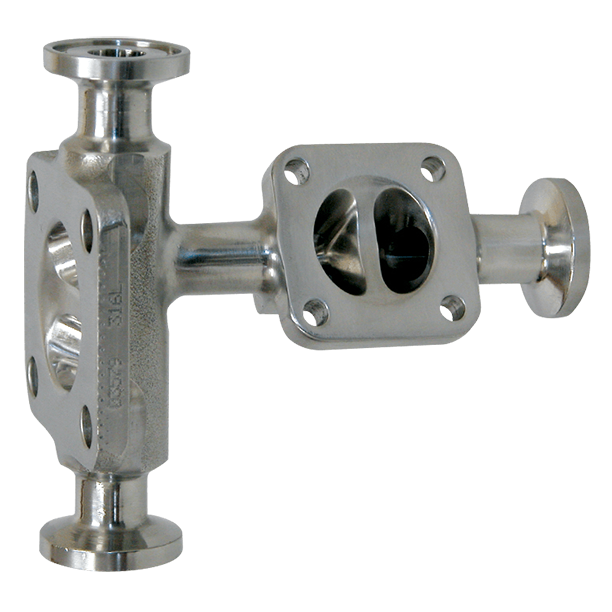

The L-pattern type diaphragm valve, due to its unique design, minimizes dead legs in point-of-use outlets. The valve, while installed in a vertical position, serves as a 90° elbow. As the fluid passes through the body, the valve can be opened to allow the provision of uncontaminated samples. The outlet can also serve as a drain or a divert port.

Manufactured from forged 316L stainless steel in sizes ranging from 1/4” through 6”. The L-pattern type can be supplied with butt weld or clamp end connections and a wide variety of finish options.

Steel & O’Brien offers several different types of switch packages and control monitors for position feedback to PLC.

Optional integrally mounted or externally mounted solenoid valves are also available.

Options include….

Point-to-Point:

  • Mechanical
  • Proximity
  • Namur

Network Type:

  • AS-i
  • DeviceNet
  • Foundation Fieldbus
  • Modbus

Note: Not all platforms are available on all valve types. Consult factory for availability depending on requirements.

Manufactured from forged 316L stainless steel in sizes ranging from 1/4” through 6”, the L-pattern type can be supplied with butt-weld or clamp end connections and a wide variety of finish options. 100% BPE Compliant with full material traceability.
