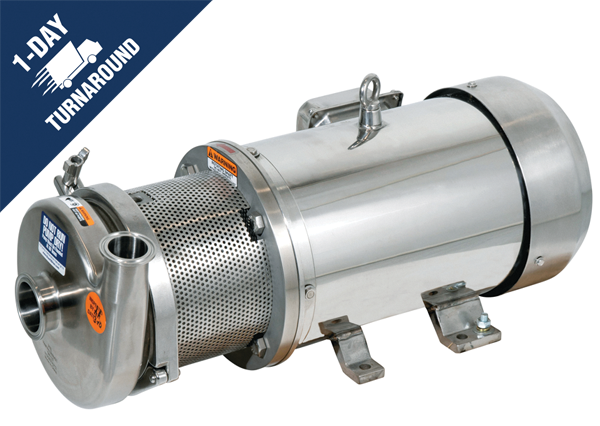

TOP-FLO® C218 Pump & Motor Assembly

Contact Us

Part NumberDescriptionSeal Type & MaterialWEG SS Motor
PCC-8182015-1MZ1PX-BB-W3-8S5.00-316L2.00" IN x 1.50" OUT, 8" IMPELLER, 18TC FRAMED-TYPE / FDA BUNA5.00 HP / 1800 RPM
PCC-8182015-3MZ1PX-FF-W3-8S5.00-316L2.00" IN x 1.50" OUT, 8" IMPELLER, 18TC FRAMEDG-TYPE / FDA FKM5.00 HP / 1800 RPM

TOP-FLO® Pump & Motor assemblies are now part of the TOP-FLO READY-TO-GO program! Our most popular pump & motor assemblies are always in stock and ready-to-go in just one business day or less. TOP-FLO pumps are designed to efficiently transfer product over a wide range of head and viscosity conditions. They are suitable for use in CIP (clean-in-place) installations with no dismantling or takedown. Sanitizing of all product contact areas is automatic. Our standard pump/motor offering ranges from 0.5HP up to 10HP, based upon flow requirements.

All motors are: 3-PHASE, 208-230/460VAC – 60HZ

Custom configurations are available but are not part of the TOP-FLO READY-TO-GO program. Contact Steel & O’Brien for details.

Features:

• Wetted surfaces are 316L stainless steel with a 32Ra grit polished sanitary finish.

• Port Connection: Clamp fittings are standard.

• Power: Supplied by a standard foot-mounted C-face motor in ranges from 0.5HP through 10HP.

• Type D seal material is carbon rotating on stationary stainless steel backplate. Suitable for dairy, water, beer and vegetable oil.

• Type DG uses the standard Type D rotating seal components with a reversible silicon carbide seat. Suitable for CIP solution, wine, spirits, wort and deionized water.

• Elastomers: Buna (D) and FKM (DG)

• Maximum impeller diameter allowed per housing is standard.
