TOP-FLO® TF-C114 Centrifugal Pumps (3-A)

Contact Us

TOP-FLO® Ready-To-Go

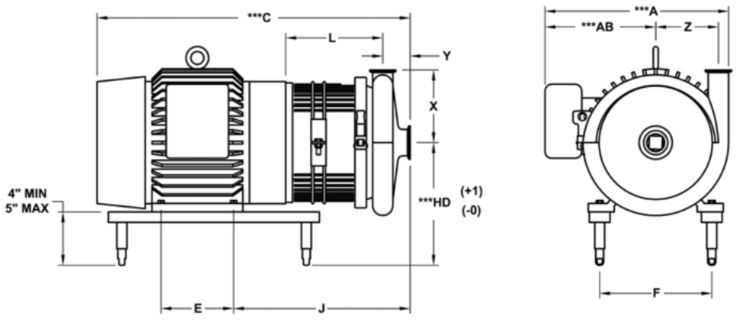

Part NumberTOP-FLO® Ready-To-GoNEMA FrameSuction/DischargeA*CHDAB*JEFL*X*YZ
PCC-4141515-1MH1PX-BB-316LYes143/1451.5 X 1.58.56317.8137.5005.25010.8444.0005.5006.2193.6251.5942.625
PCC-4561515-1MH1PX-BB-316LYes561.5 X 1.58.31316.8217.5005.00010.3753.0004.8756.2193.6251.5942.625
PCC-4561515-3MH1PX-FF-316LYes561.5 X 1.58.31316.8217.5005.00010.3753.0004.8756.2193.6251.5942.625
PCC-4562015-1MH1PX-BB-316LYes562.0 X 1.58.31316.8217.5005.00010.3753.0004.8756.2193.6251.5942.625
PCC-4562015-3MH1PX-F6-316LYes562.0 X 1.58.31316.8217.5005.00010.3753.0004.8756.2193.6251.5942.625

Chart Above:

Seals are std (D) CAR VS. SS and Inlet/Outlet connections are Sanitary clamp

The TOP-FLO® name represents the finest in sanitary process equipment. TOP-FLO® pumps have been designed to offer an efficient transfer of product over a wide range of head and viscosity conditions. TOP-FLO® pumps are easy to install, clean, and operate. Steel & O’Brien makes it simple to incorporate these centrifugal pumps into your existing system.

The TF-C114 pump is ideal for use in small and medium-size process applications in the dairy, food, beverage, pharmaceutical, and other sanitary process industries. TOP-FLO® C114 pumps are suitable for use in CIP (clean-in-place) installations. This feature enables easy self-cleaning with no dismantling or take-down. Sanitizing of all product contact areas is automatic.

All pumps are available in standard inlet sizes and outlet sizes. In addition, enlarged inlet sizes are available for special applications.

  • Inlet- 1-1/2 or 2
  • Outlet- 1-1/2
  • Max. Imp.- 4

Features:

Tech Specs

Available Motor Frame Sizes (Sold Separately): 056C, 143TC/145TC

  • Capacity – 10gpm to 125gpm
  • Pressure – 31 PSIG / 71.5 Foot of Head
  • Viscosity – 200 cp
  • Temperature – 212° F

Pump Casings:

Volute type – Standard

Pump Connections:

Sanitary:

  • Clamp
  • Bevel Seat (ACME)

Industrial:

  • Threaded
  • Flanged

Pump Construction Materials:

  • All wetted parts – 316L/CF3M SS
  • Seals – Carbon (other seals available)
  • Casing Gasket – BUNA (Standard)
  • FKM, EPDM, and PTFE are available

Pump Finishes:

  • Polished or Electropolished
  • 32Ra Standard
