Sanitary Spray Balls

Stainless Steel Spray Balls for CIP Tank Cleaning

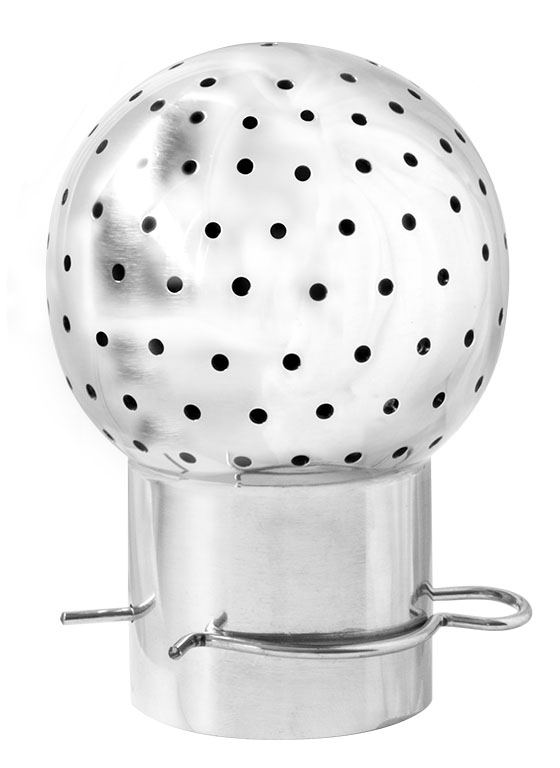

Sanitary spray balls are stationary cleaning devices that distribute water or cleaning solutions through precisely positioned openings. As fluid passes through the spray ball, the arrangement of these openings directs the spray toward designated areas within the vessel.

Unlike rotating cleaning devices, static spray balls contain no rotating spray mechanism. Their effectiveness depends on proper spray pattern selection, flow rate, operating pressure, vessel geometry, and cleaning conditions.

Available Spray Patterns and Specifications

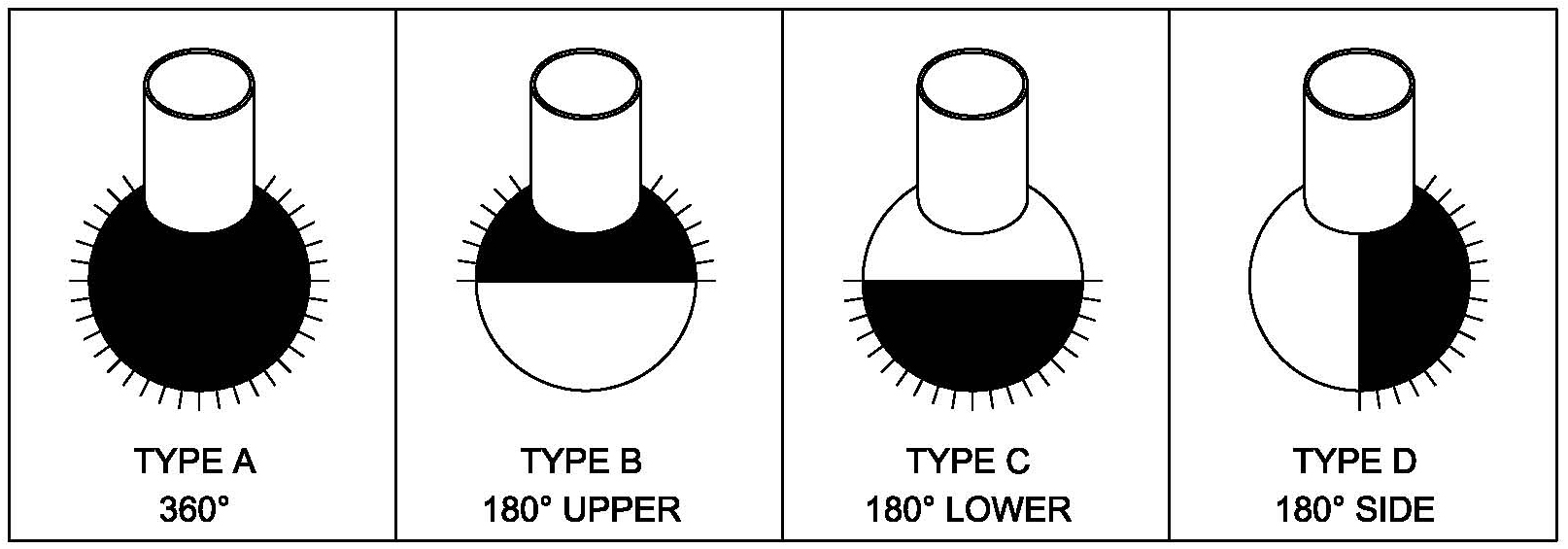

Steel & O’Brien offers sanitary spray balls in four spray pattern configurations:

• Type A – 360° Spray: Provides spray distribution around the full circumference of the spray ball.
• Type B – 180° Upper Spray: Directs spray toward the upper portion of the vessel.
• Type C – 180° Lower Spray: Directs spray toward the lower portion of the vessel.
• Type D – 180° Side Spray: Provides directional spray coverage for application-specific cleaning requirements.

Our stationary spray balls are manufactured from heavy-gauge 304 or 316L stainless steel and are available in multiple sizes and configurations.

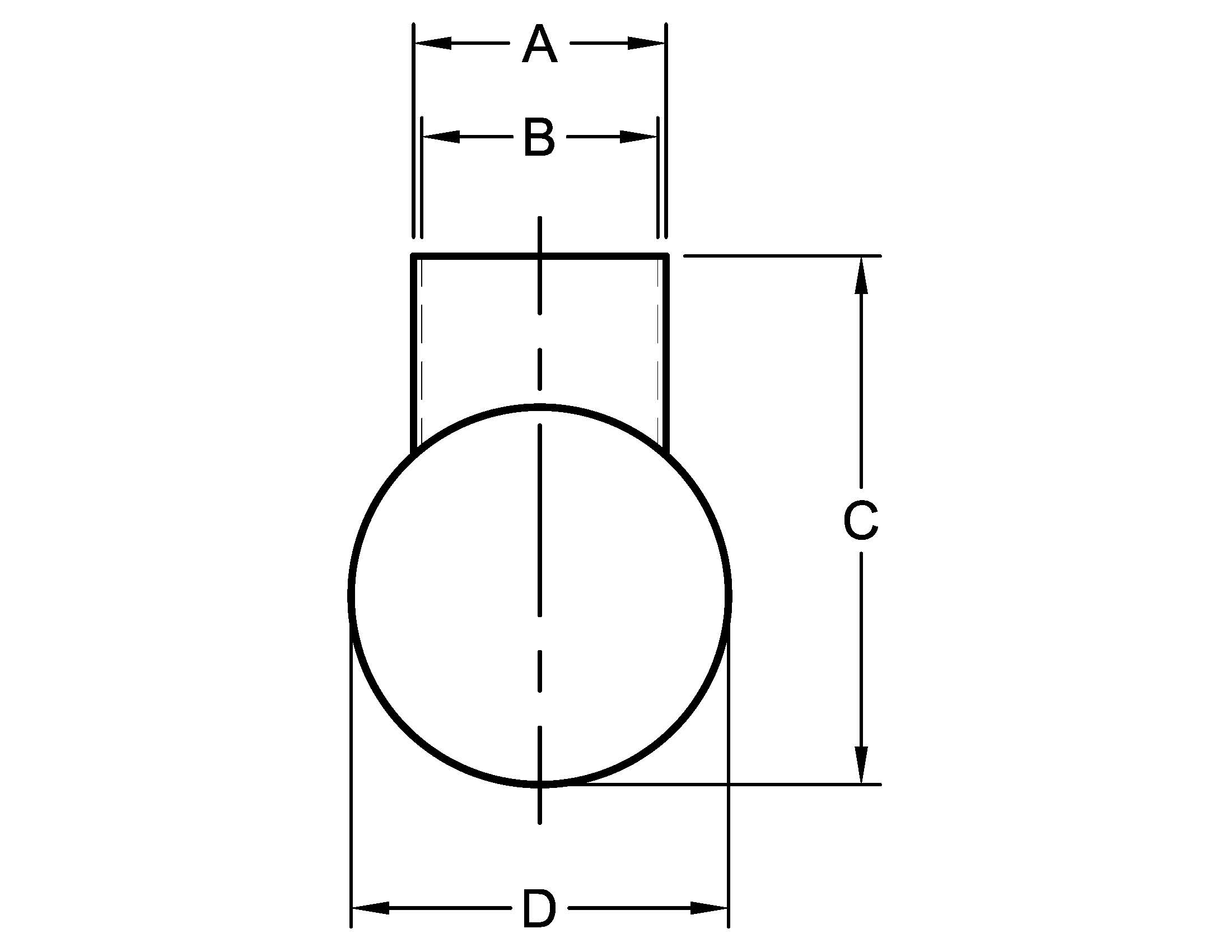

Refer to the product specifications below for available part numbers, dimensions, spray patterns, spray radius, hole diameter, and flow rates.

Selecting the Right Sanitary Spray Ball

Selecting a sanitary spray ball requires consideration of the vessel configuration and cleaning system requirements. Important factors include:

• Spray pattern: Select 360° or directional coverage based on the areas requiring cleaning.
• Vessel dimensions: Evaluate tank geometry and spray radius to determine suitable placement and coverage.
• Flow rate and pressure: Verify that the cleaning system can supply the required operating conditions.
• Material selection: Choose 304 or 316L stainless steel based on process requirements and cleaning solution compatibility.
• Installation requirements: Confirm the spray ball dimensions and mounting compatibility with the existing tube or pipe.

Proper selection and placement help support effective cleaning performance in CIP applications.

Applications for Sanitary Spray Balls

Steel & O’Brien sanitary spray balls are commonly used in tank-cleaning applications throughout hygienic processing industries, including:

• Food processing
• Beverage production
• Dairy processing
• Breweries and wineries

Additional applications may be suitable depending on process conditions, cleaning requirements, and material compatibility.

Why Choose Steel & O’Brien?

Steel & O’Brien supplies stainless steel sanitary components for demanding hygienic processing applications. Our sanitary spray balls are available in multiple configurations to accommodate different tank-cleaning requirements.

With decades of experience supplying sanitary processing components, our knowledgeable team can help customers identify appropriate spray ball configurations based on their application and operating requirements.

Need assistance in selecting a sanitary spray ball? Contact Steel & O’Brien to discuss product specifications and availability, or find a distributor.
