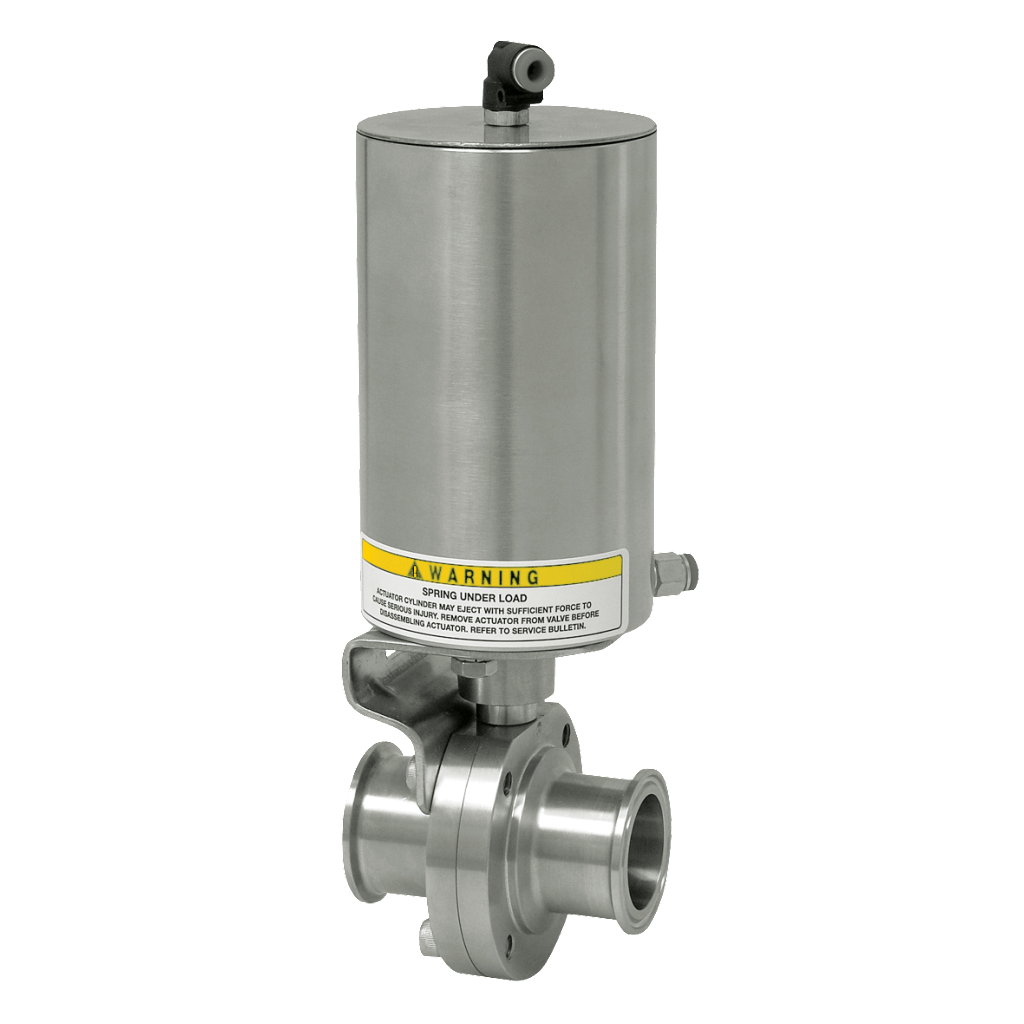

TOP-FLO® Stainless Steel Canister Actuator for our butterfly valves are constructed of a 304SS shell with o-ring sealed, pre-lubricated internals for long service life. Available for valves sizes 1″ – 4″.
- Stainless steel brackets and fasteners to withstand external washdown environments.
- Dual stacked coil springs that render reliable output torques to ensure valve closure.
- Visual indication is located on the coupler for easy valve position confirmation.
- 1/8” FNPT x 1/4″ OD air connections for a poly tube.
- Actuator operating pressure – 80 psi
- Air volume – 54 cubic inches
