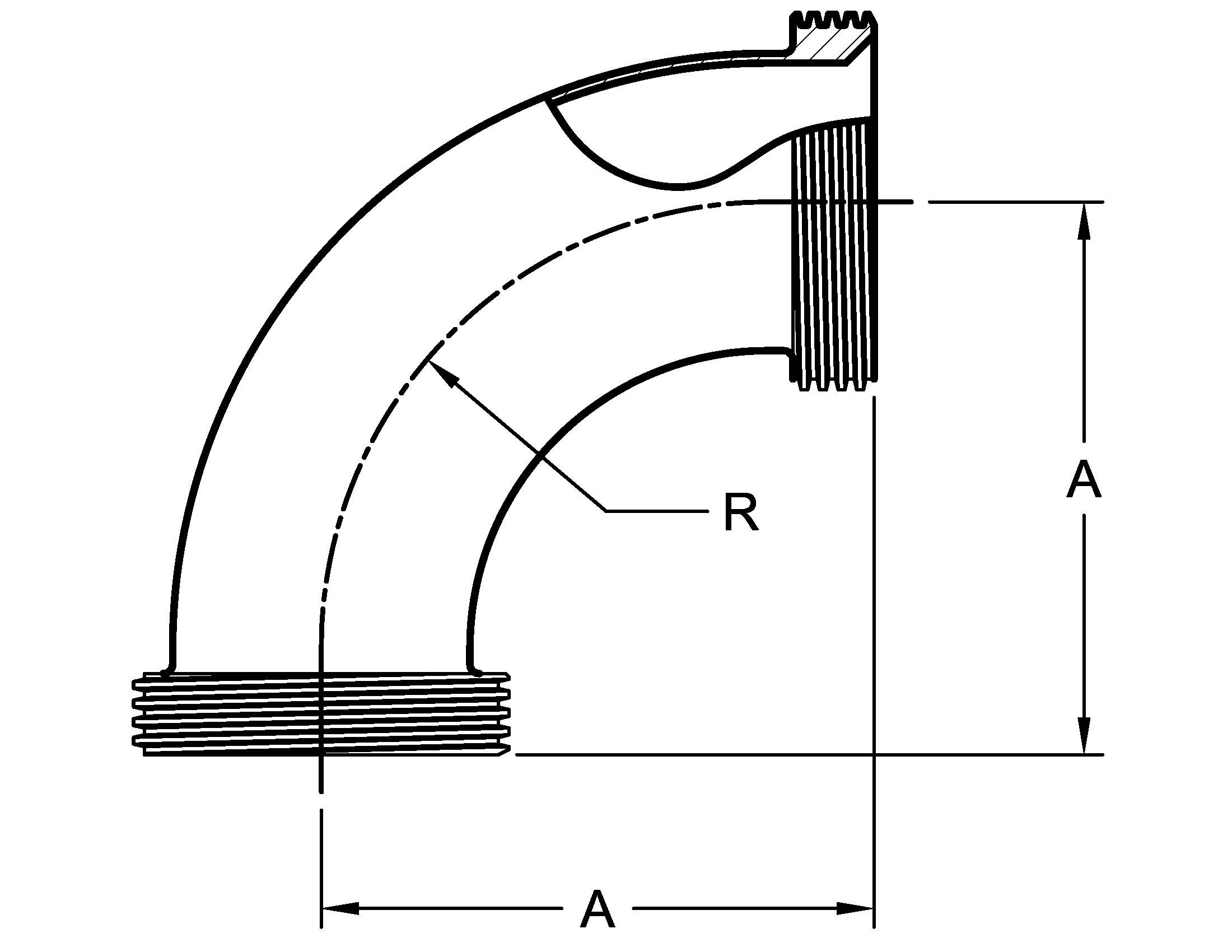

2C 90 DEGREE ELBOW, THREADED ENDS
| Part Number | Size (inches) | A | R |
|---|---|---|---|
| 2C-1 | 1 | 2.188 | 1.50 |
| 2C-1.5 | 1 1/2 | 2.969 | 2.25 |
| 2C-2 | 2 | 3.750 | 3.00 |
| 2C-2.5 | 2 1/2 | 4.594 | 3.75 |
| 2C-3 | 3 | 5.433 | 4.50 |
| 2C-4 | 4 | 7.219 | 6.00 |
| Part Number | Size (inches) | A | R |
|---|---|---|---|
| 2C-1 | 1 | 2.188 | 1.50 |
| 2C-1.5 | 1 1/2 | 2.969 | 2.25 |
| 2C-2 | 2 | 3.750 | 3.00 |
| 2C-2.5 | 2 1/2 | 4.594 | 3.75 |
| 2C-3 | 3 | 5.433 | 4.50 |
| 2C-4 | 4 | 7.219 | 6.00 |
