Why Controlled Sulfur Matters in ASME BPE Fittings

Controlled sulfur content is critical in ASME BPE applications because it improves orbital weld consistency, penetration, and overall weld quality when joining stainless steel tubing in biopharmaceutical processing systems. Maintaining sulfur levels within the ASME BPE specification of 0.005–0.017 helps ensure reliable, repeatable welds while reducing the risk of defects that can compromise system integrity, cleanability, and validation requirements.

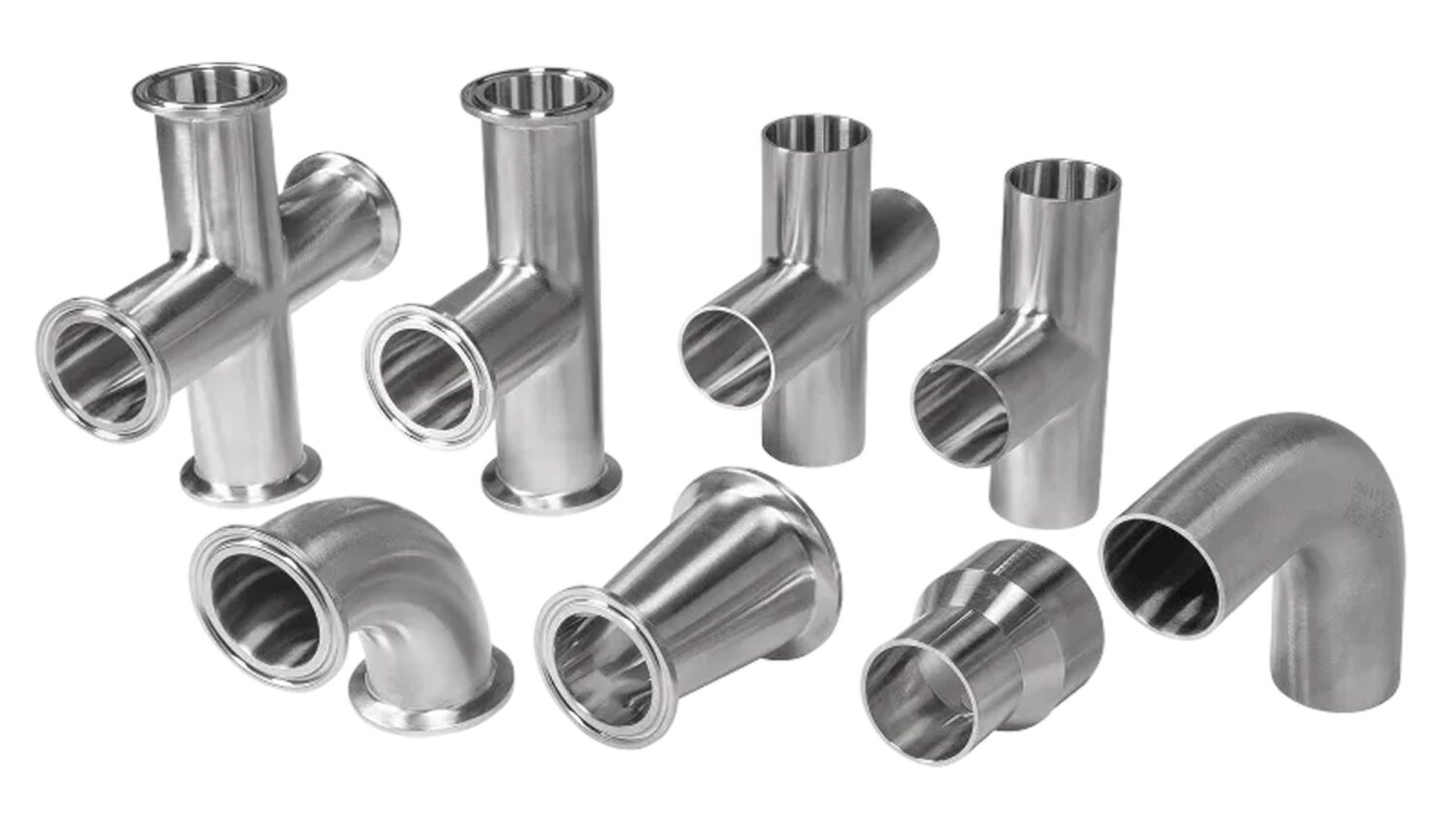

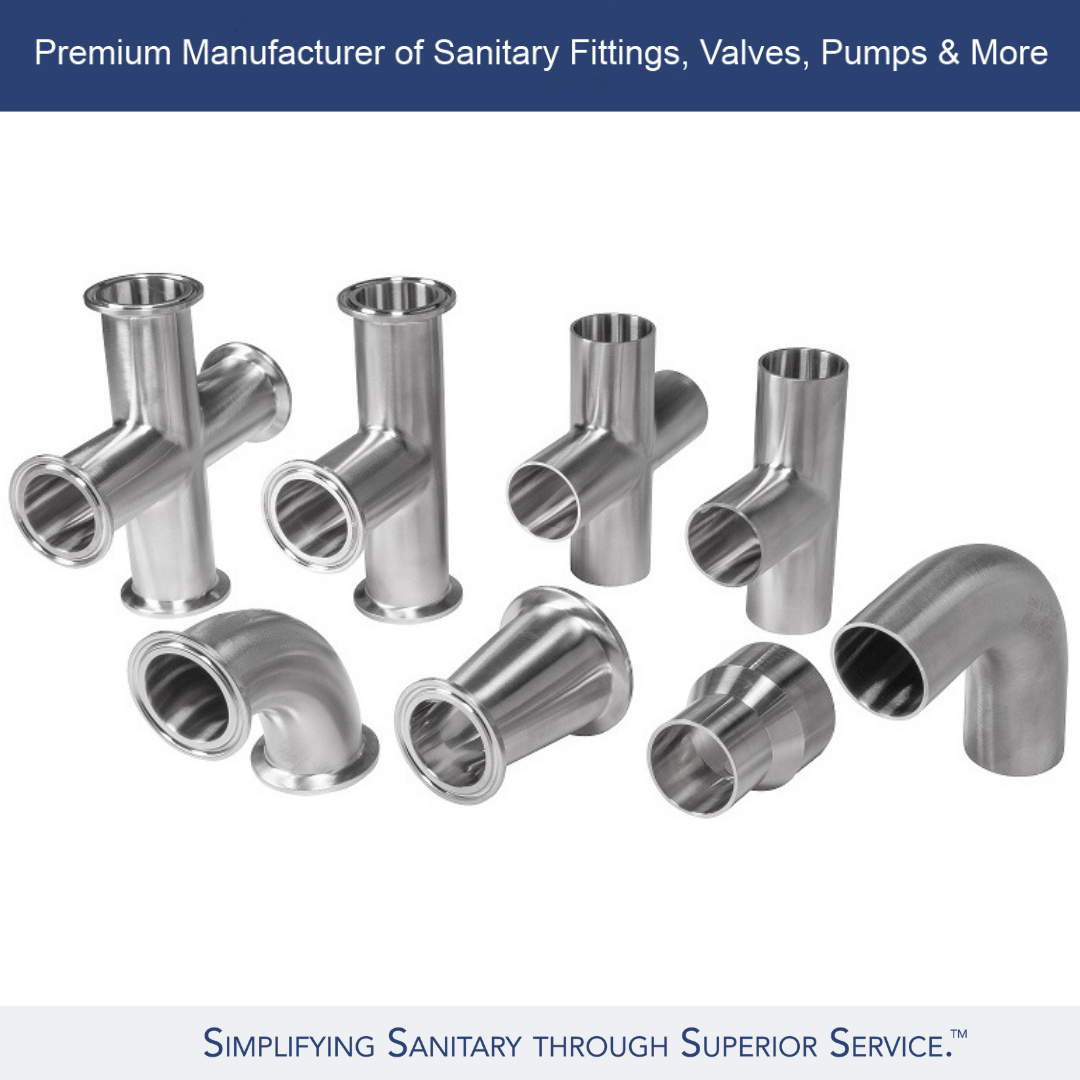

Steel & O’Brien offers a complete line of ASME-certified BPE fittings in both extended butt weld and hygienic clamp end configurations. All 316L extended butt weld ends conform to ASME BPE-controlled sulfur requirements, providing superior weldability to industry-standard biopharma tubing. In addition, BPE butt weld fittings are manufactured with minimum straight tangent lengths to accommodate a variety of orbital weld head types and widths during installation.

Ferrule connections on hygienic clamp fittings are machined to the exact tolerances specified in Table DT-7-1 of the ASME BPE standard, ensuring proper fit-up with mating gaskets and clamps commonly used throughout the industry.

Steel & O’Brien BPE fittings are inspected in-house to verify compliance with stringent surface finish (Part SF), dimensional (Part DT), and documentation requirements (applicable sections of Part GR – 5.2). Each fitting is individually capped and bagged, with the MTR included for easy reference and traceability during welding and validation operations.

Stocked internal surface finishes include:

  • 20Ra max. mechanical (BPE surface finish code SF1)
  • 15Ra max. electropolished (BPE surface finish code SF4)
  • Additional BPE surface finishes available upon request

By combining ASME BPE compliance, controlled sulfur materials, precision manufacturing, and rigorous in-house quality inspection, Steel & O’Brien delivers fittings engineered for the demanding requirements of biopharmaceutical processing systems. From superior orbital weldability to complete material traceability, our BPE product line is designed to support reliable system performance, streamlined installation, and long-term process integrity.
