Air Blow Check Valves for Evacuating Product and CIP Solution Lines

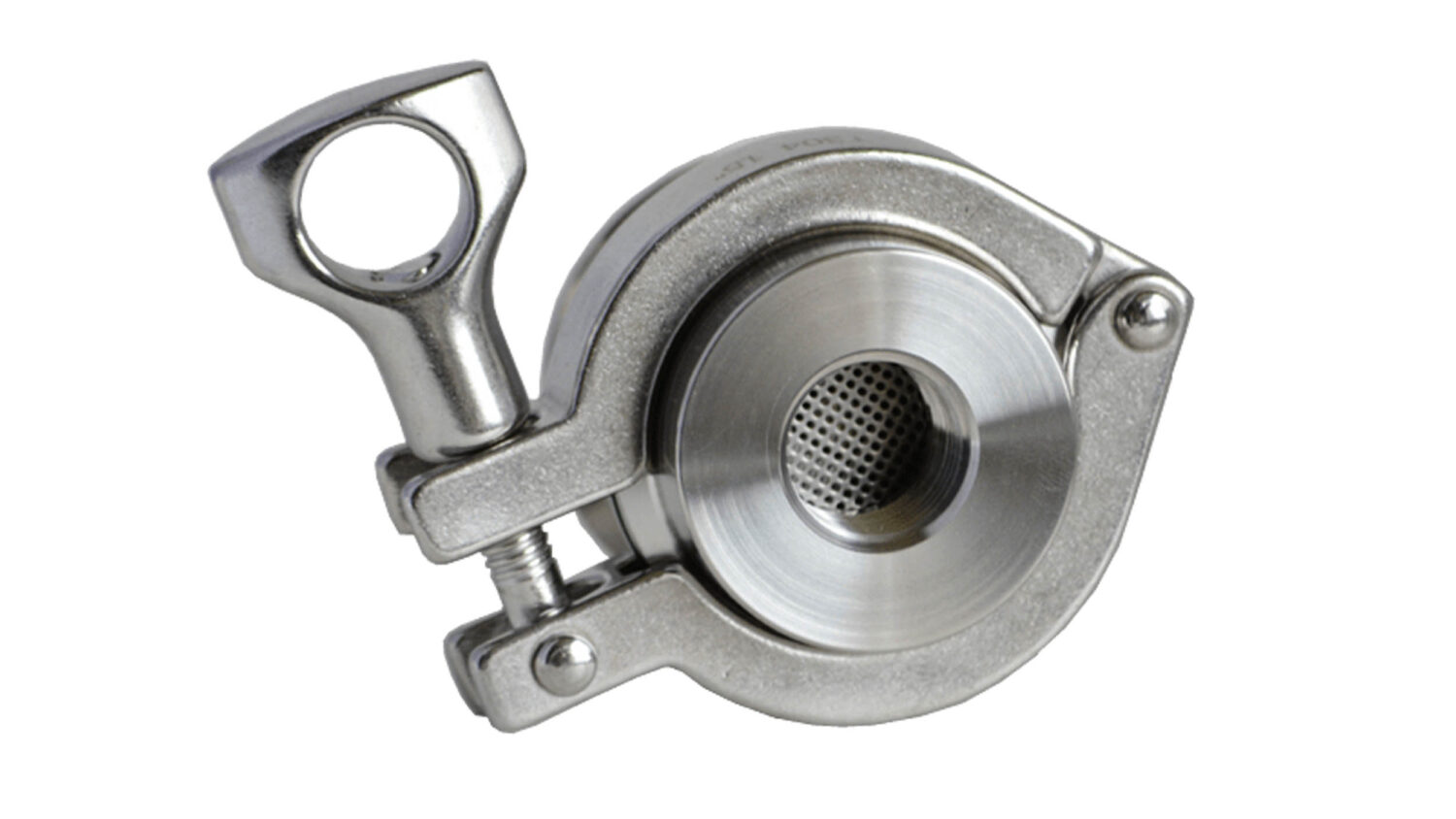

The TOP-FLO® Air Blow Check Valve is designed to efficiently evacuate product and CIP solutions from sanitary process lines while also providing air agitation for tanks and vessels. These valves help protect pipelines from corrosion by thoroughly drying process lines after cleaning and rinsing, allowing a protective oxide film to form on stainless steel surfaces.
In addition to line drying, air agitation improves product mixing and blending, helping enhance product consistency, uniformity, and overall quality in sanitary processing applications.
The Air Blow Check Valve can be installed in either horizontal or vertical positions and mounts easily to ball check valves or tanks using a clamp, gasket, and mounting ferrule with no additional fittings required.
Features:
- Fail-safe operation with air-to-open and spring-to-close functionality to prevent backflow of product or CIP solution
- Quick assembly and disassembly for easy cleaning, inspection, and filter media replacement
- Compatible with quick-couple or FNPT air connections
- Durable EPDM stopper and bonded EPDM rubber spherical plug assembly
- Available in 1-1/2” to 4” clamp sizes
- Constructed with 316L stainless steel bodies for superior corrosion resistance and sanitary performance
- Remote operation capability through controlled air supply
- Rugged construction designed for demanding sanitary processing environments
For additional product details, specifications, or application support, contact Steel & O’Brien.
